Calefactio  |  SKU: CLF-CV050

MPN: CV050

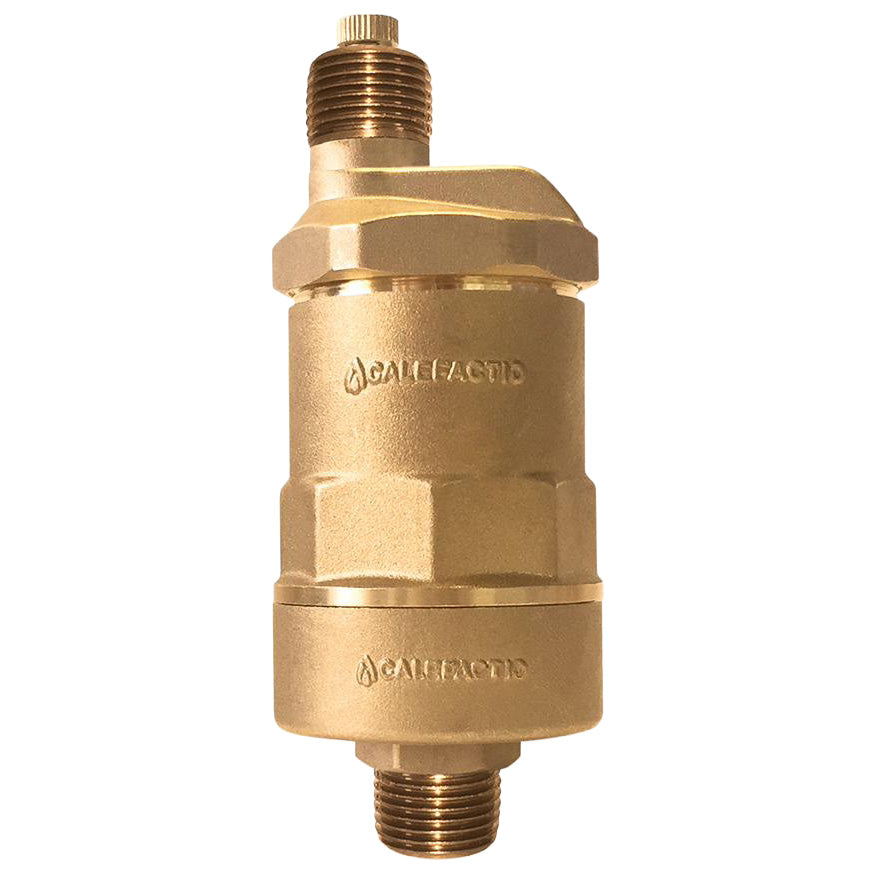

Calefactio 1/2" FNPT X 3/4'' MNPT Calvent Automatic Air Vent

$112.25 CAD
Shipping calculated at checkout.

The CV050 Automatic Air Vent is designed to efficiently remove trapped air from hydronic and heating systems, improving overall system performance and reliability.

Because air is lighter than water, it naturally rises to the highest points in a system. The CV050 takes advantage of this principle to automatically release accumulated air and maintain optimal circulation.

Pickup available at Nordik Radiant

Usually ready in 2-4 days

Warranty

This product is covered by a 1 year limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Technical Specifications User manual

Calefactio 1/2" FNPT X 3/4'' MNPT Calvent Automatic Air Vent

Air being lighter than water, it is physically drawn towards high points in a system. The automatic air vent has a float that is linked to a relief valve. When air is drawn in the chamber, it accumulates to a point where it builds pressure that will push down the liquid and therefore, the float. As the float goes down by the pressure effect, it opens the release valve that liberates air until the float comes back up and closes the valve.

Unique protection zone in the industry.

The air vent’s chamber is under a smaller chamber, increasing the distance between the water level and the deareation valve, thereby reducing the risk of contaminatio

Benefits

  • Oversized chamber giving more space between water and the deareation valve to release a greater amount of air at each opening while protecting the valve from contamination due to contact with liquid
  • Pin guided float
  • Easy to disassemble hexagonal head for cleaning and maintenance
  • Enhances heating systems efficiency
  • A system without air allows a full contact between the liquidand transfer surfaces offering an optimized temperature control
  • Limits system component’s corrosion
