3/4" MNPT Balancing Valve with Flowmeter and check valve

Name: 3/4" MNPT Balancing Valve with Flowmeter and check valve
Brand: Caleffi
Price: 281.00 CAD
Availability: InStock

$281.00 CAD

Shipping calculated at checkout.

Warranty

This product is covered by a 1 year limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Technical Specifications User manual

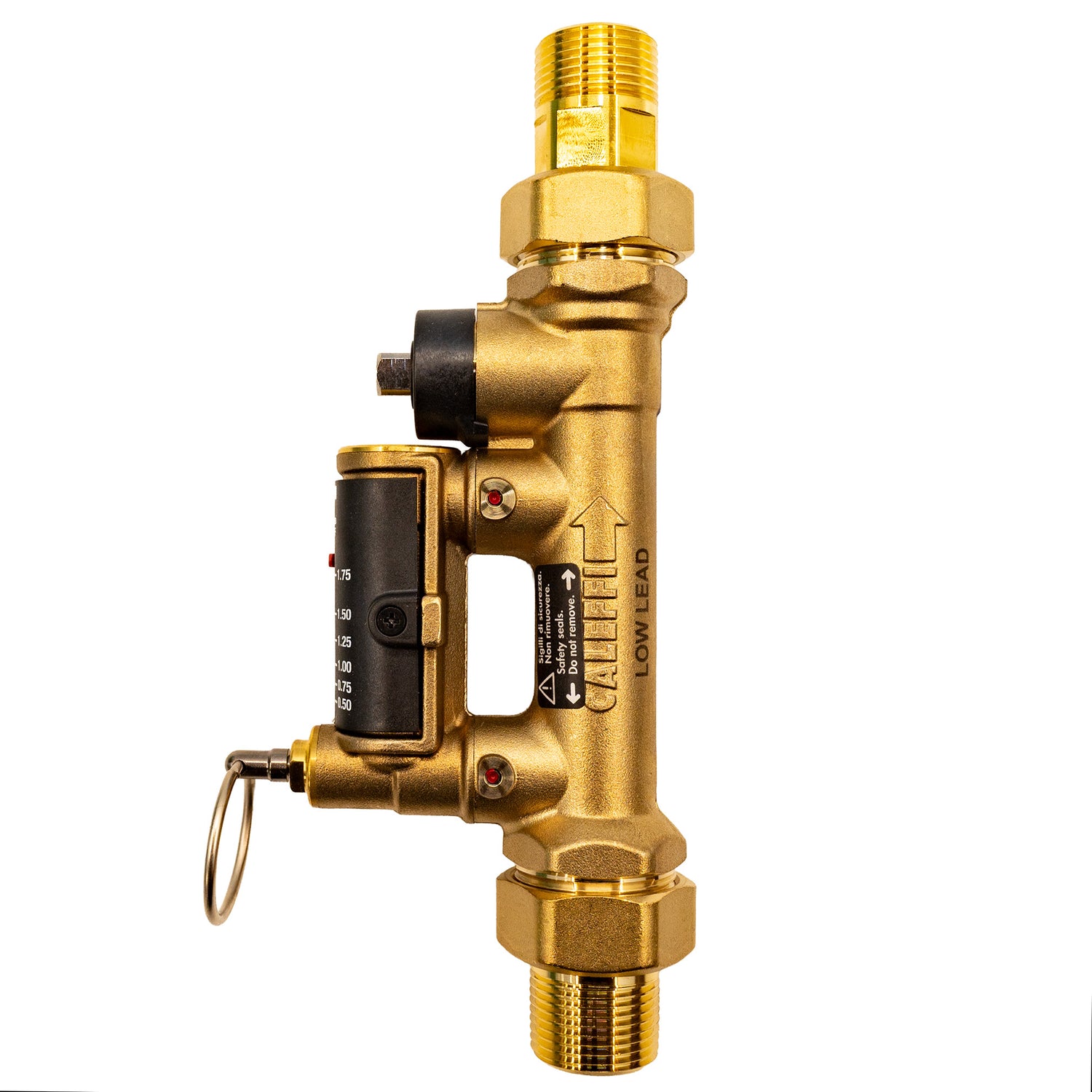

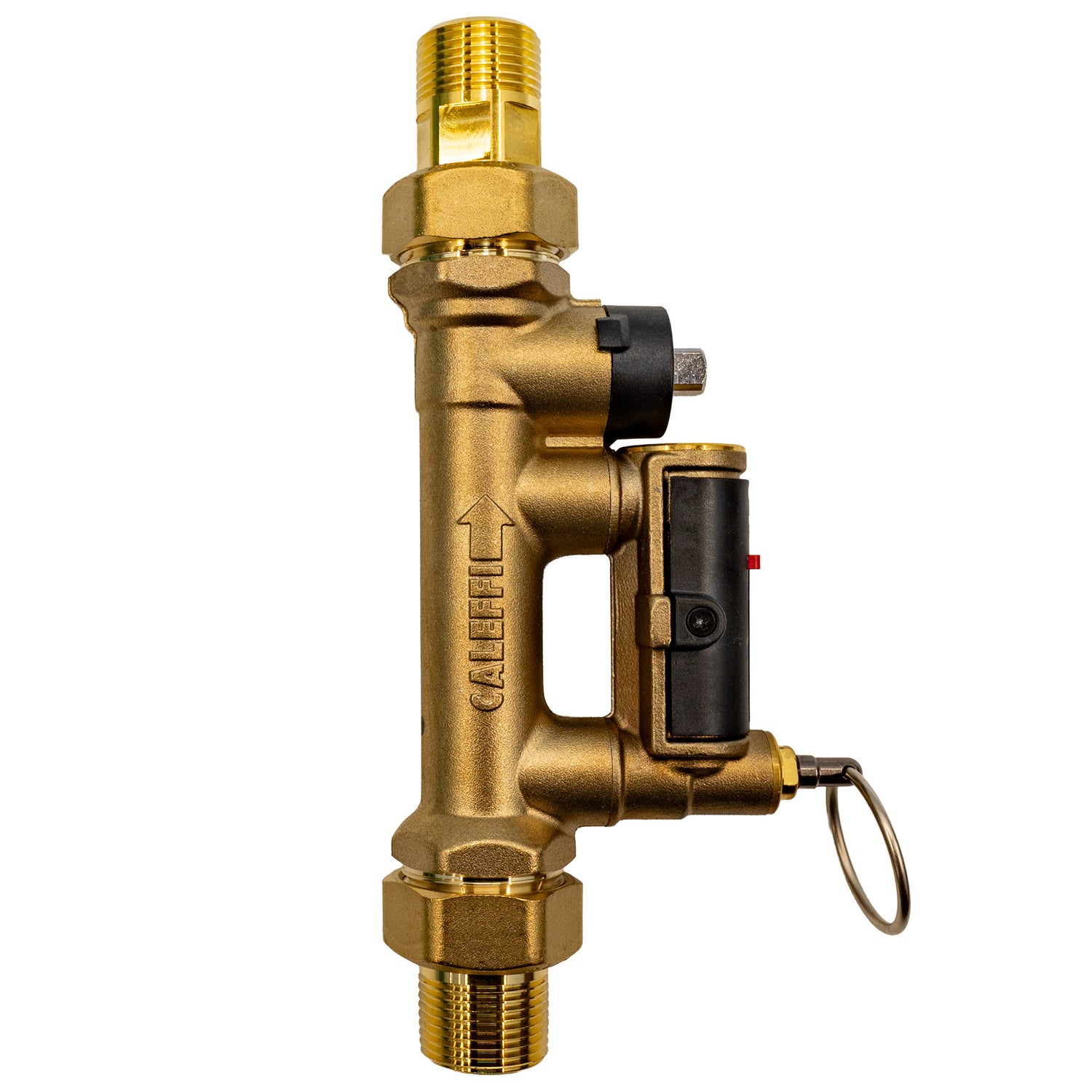

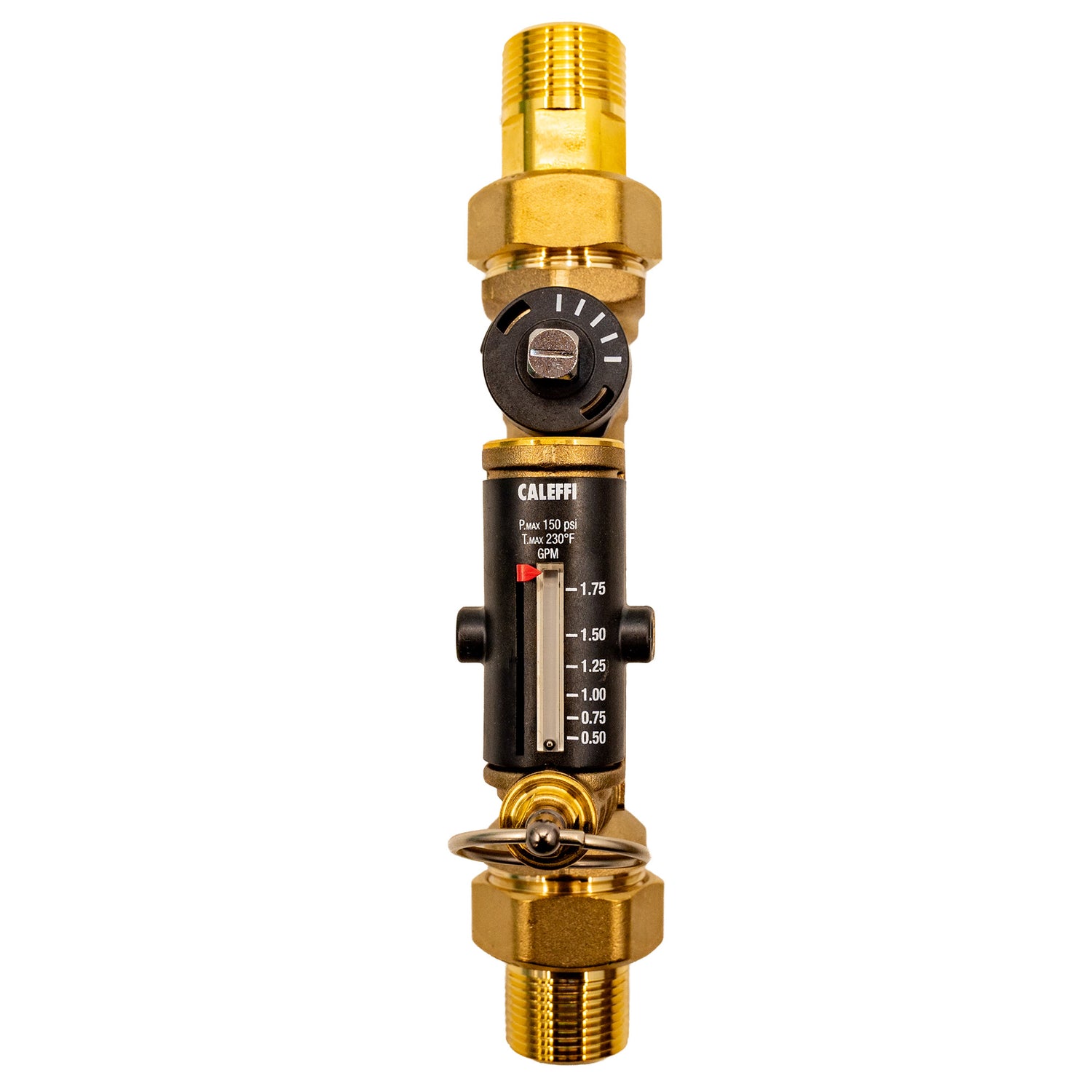

The QuickSetter+™ manual balancing valve contains a built-in flow meter and sight gauge, negating the need for differential pressure gauges and reference charts. Circuit balancing is fast, easy and accurate. Constructed of DZR low-lead brass, QuickSetter+ is ideally suited for use in plumbing applications such as hot water recirculation systems. The built-in check valve protects against circuit thermosiphoning. The outlet temperature gauge (optional) verifies the fluid temperature in the circuit. The flow meter sight gauge is dry (not exposed to the fluid) thus eliminating the possibility of gauge clouding/scaling over time. Peroxide-cured EPDM seals provide chlorine and chloramine resistance and long operating life. The QuickSetter+ can
also be used in heating systems.The valve complies with NSF/ANSI/CAN 372, low lead, as certified by ICC-ES.

Caleffi code 290030 full-port ball valve is designed for isolating the QuickSetter+ 132AFC series that has 1" metric "G" thread union connections. The isolation valve installs in between the valve body
and the tailpiece fitting assembly. Male x Female configuration and bi-directional full ball valve flow capacity provides flexibility for using one, two or three isolation valves for the primary functioning valve. An optional stem extension is also available for those projects that require pipe insulation.
