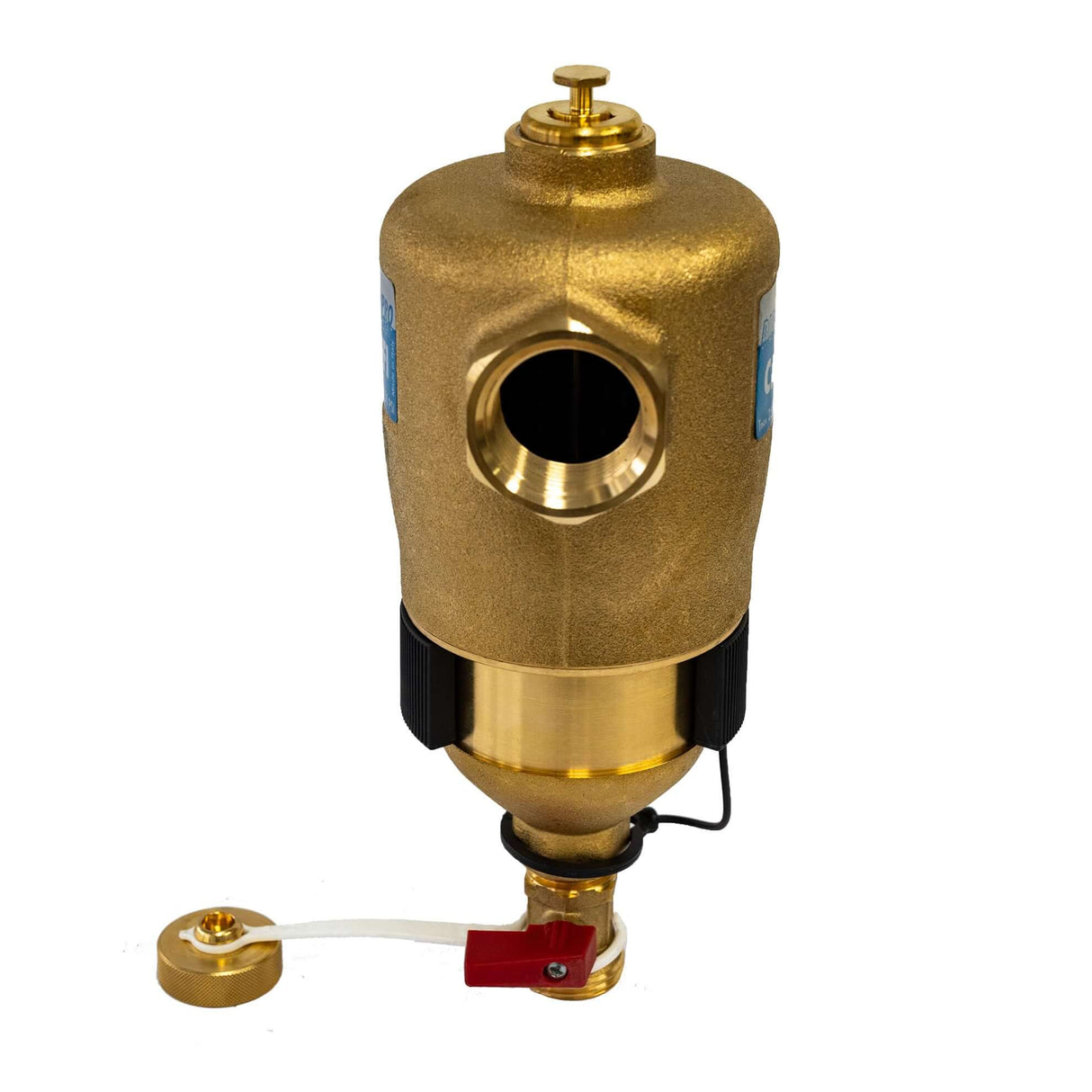

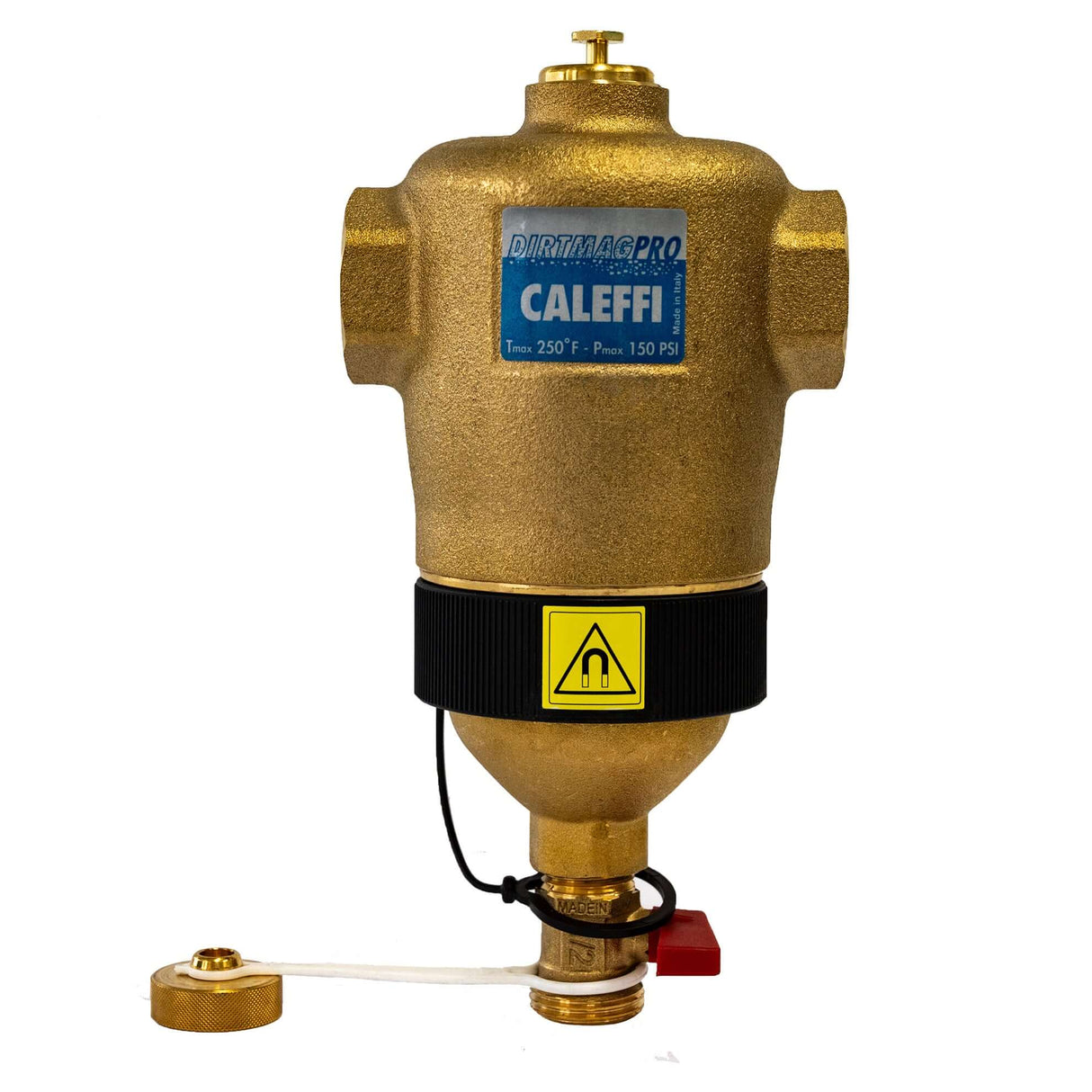

1″ NPT DirtMag Pro Dirt Separator

Double the protection:

Captures two forms of debris that can damage or shorten the life of heat exchangers, circulators, valves and polymers: ferrous debris such as magnetite, and non-ferrous debris such as copper shavings, solder, lime-scale fragments, silica and pipe compound.

Concentric pattern collision media:

Unique dirt collision media uses low-flow velocity, deflection and gravity to separate dirt particles as small as 5 microns from flow stream. Concentric pattern design has low flow resistance resulting in 85% less pressure drop compared to same size
Y-strainer.

Unique dual magnetic fields:

Two powerful neodymium rare-earth magnetic fields attract and capture ferrous oxide impurities and allow simple blowdown. No
disassembly required.

Fast and easy clean hands purging:

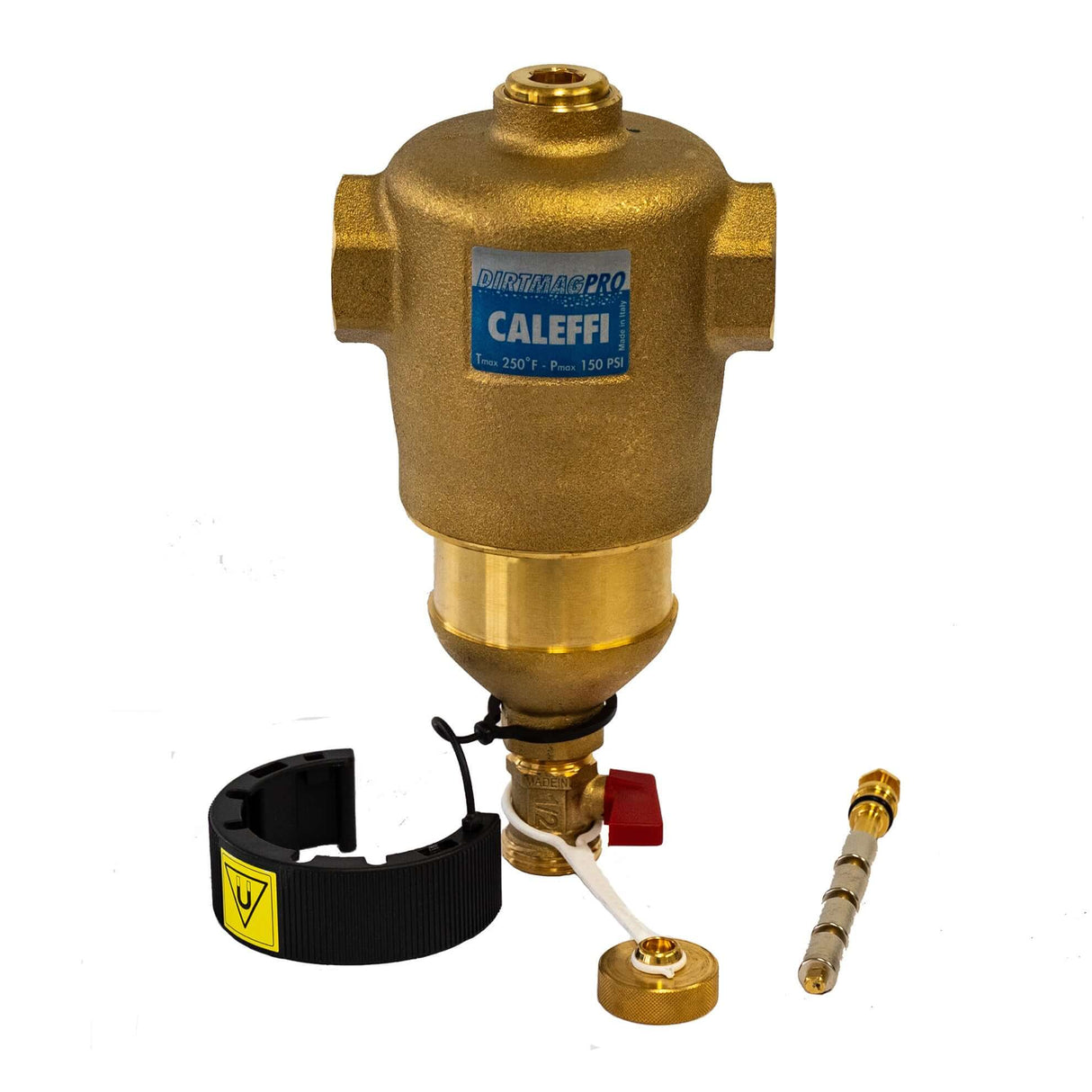

Pull out the magnetic rod from drywell on top, unclip the external barrel magnetic collar and open the purge valve to simply release the captured magnetic and non-magnetic impurities.

Increased power:

Powerful magnetic pull rod mounted inside drywell and positioned directly in fluid flow path, external magnetic barrel collar and newly designed collision media function together to increase magnetic debris removal efficiency by 40%.

High performance dirt separation with trouble-free blowdown

The DIRTMAG® PRO incorporates patented technology and features dual magnetic fields that increase ferrous debris removal efficiency by 40%. The concentric pattern collision media inside the low-velocity zone efficiently separates non-ferrous debris. All debris is quickly purged from system via the blow down
valve. No disassembly or scraping of magnetite from wetted magnets is required, which means clean hands for fast and easy servicing.
