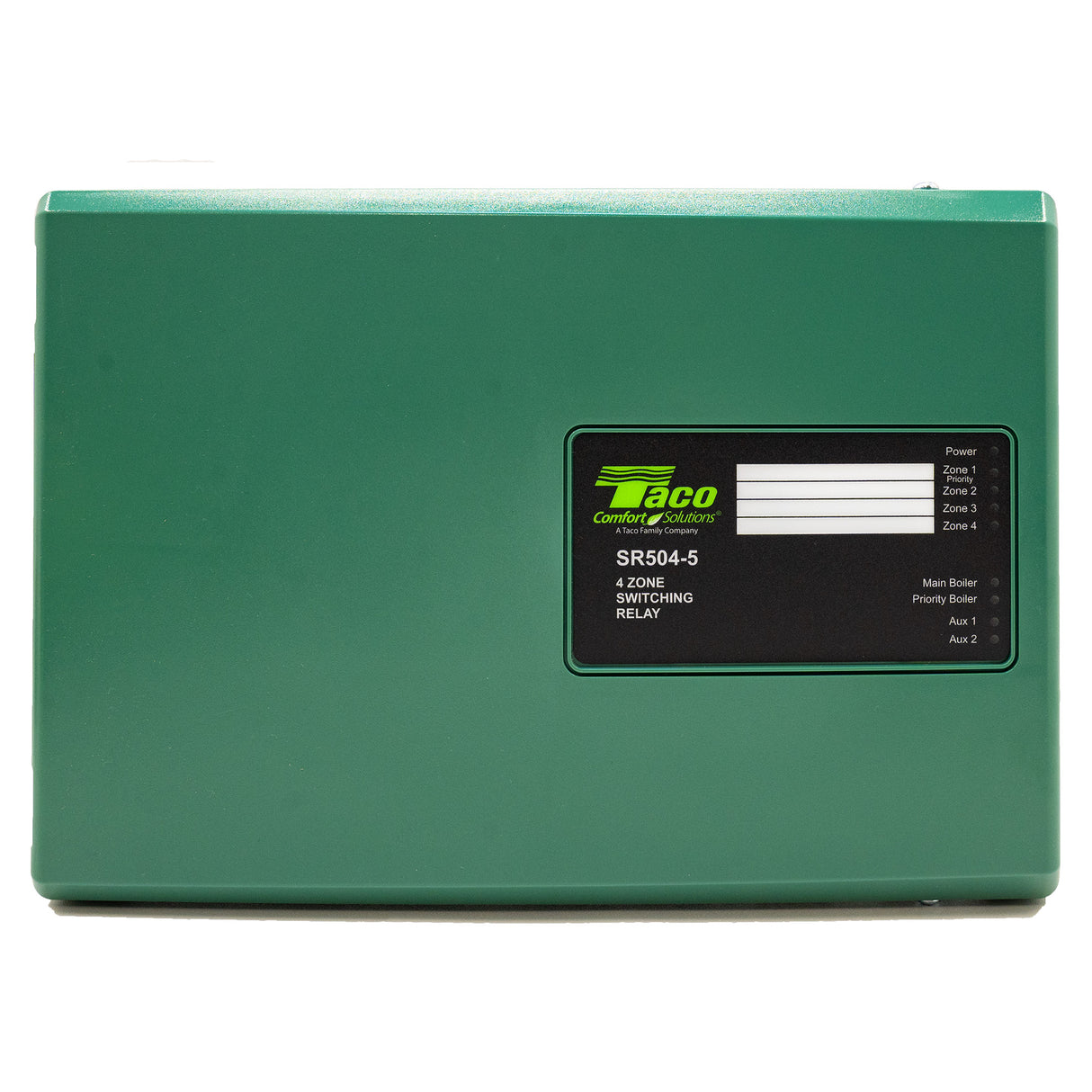

SR504-5 - 4 Zones Switching Relay

The Taco® Switching Relay continues to be the best choice for all your zoning needs, with advanced timer, boiler, and relay functions, external diagnostic lights, switchable functions and contractor friendly PC board layouts.

The added Bluetooth® connected app customizes the Switching Relay to your customer’s needs, maximizing the comfort and efficiency they expect.

Next Generation Switching Relays

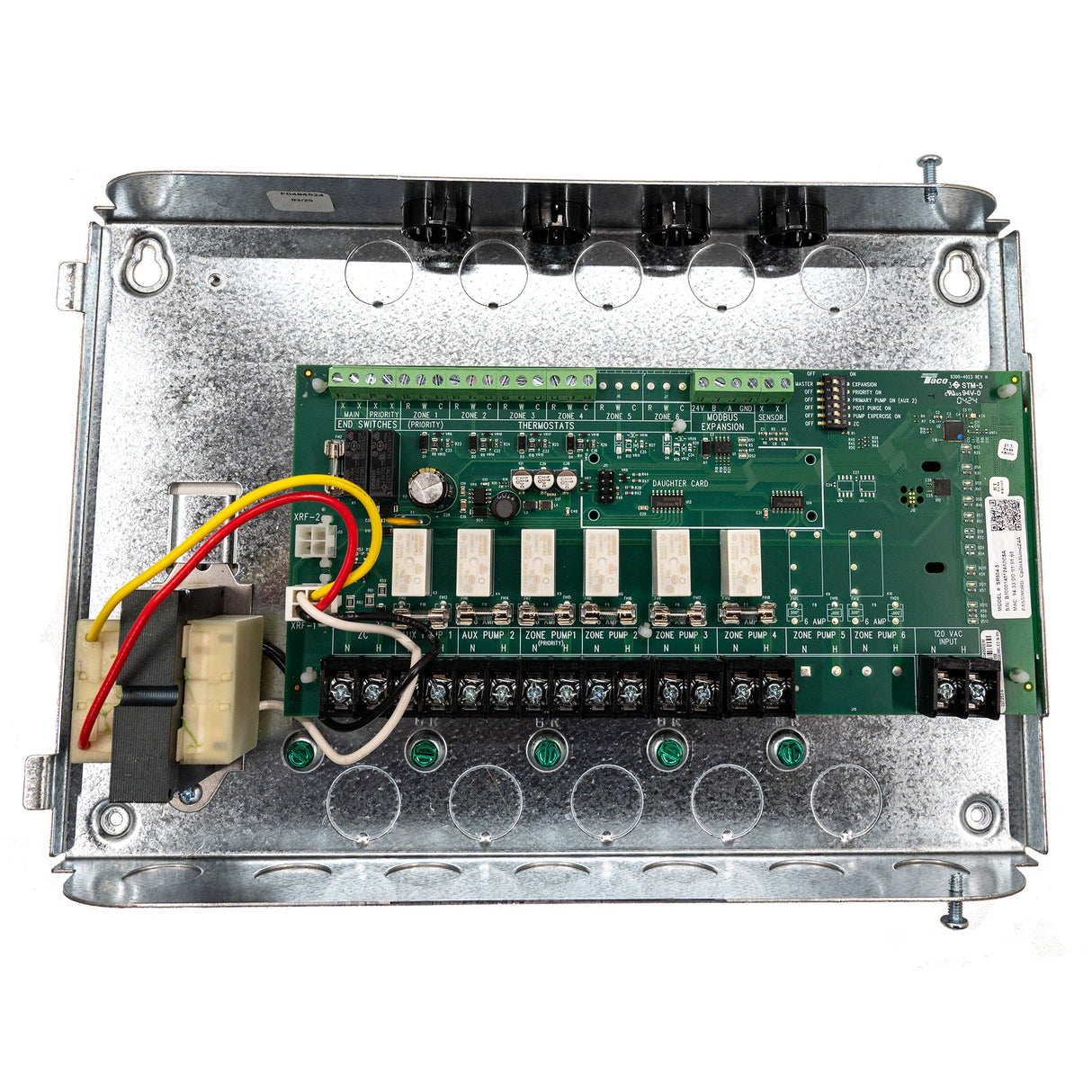

Taco Switching Relays combine clearly labeled PC board layouts with advanced features that allow for total system customization. Whether using basic functionality, DIP switch features or the advanced features of the Taco Control mobile app the job is made easy.

External indicator lights provide instant diagnostic feedback, making a snap of service calls or new installation start-ups. All switching relays are UL listed and compatible with conventional, programmable, and WIFI based thermostats.

Features

• Front Diagnostic Lights
• Switchable Priority
• Built-in Priority Protection
• Simplified Wiring
• Premium Sealed Relays
• Compact Design
• Fuse Protected
• 100% Factory Tested
• Isolated End Switch
• Contractor Friendly PC Board Layout
• Universal Thermostat Compatibility
• 24 Volt Power Output
• For hard wired thermostats
• Field Replaceable Transformer
• Extended 3 Year Warranty

Next Generation New Features

• Built-in; Post Purge and Pump Exercise Functions
• Switchable Primary Circulator Output
• Two Boiler Contacts, Utilizes Full Functionality of Mod-Con Boilers
• Expandable to 20 Zoning Panels (120 zones if all are six zone panels)
• Taco Control Mobile App (not Required for all functions)
• Wireless Update Capabilities
• Four Programmable Outputs
• DHW Recirculation SmartPlus® Logic
• Diagnostic Lights for All Outputs
• Additional Space for Wiring
• More Space To Write Zone Information
• Easy to Remove Hinged Cover
• Rear Knockouts
• Standard Control Upgradeable to Reset Model
• Modbus Communication

Additional Reset Model Features

• Indoor Reset Control (Load Reset)
• Outdoor Reset Control (Weather Compensation)

Taco Control Mobile App

Whether you want to maximize the capabilities of the controller or use it as you always have, the Taco Control Bluetooth® mobile app allows for customization, maximizing comfort and efficiency to any system
