1" NPT Hydro Separator for natural gas and propane boiler
1'' FNPT union Caleffi Hydro Separator
is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Warranty
This product is covered by a 1 year limited warranty
Delivery and Shipping
Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.
Depending on your delivery location, transit time will vary from 1 day to 5 days
Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

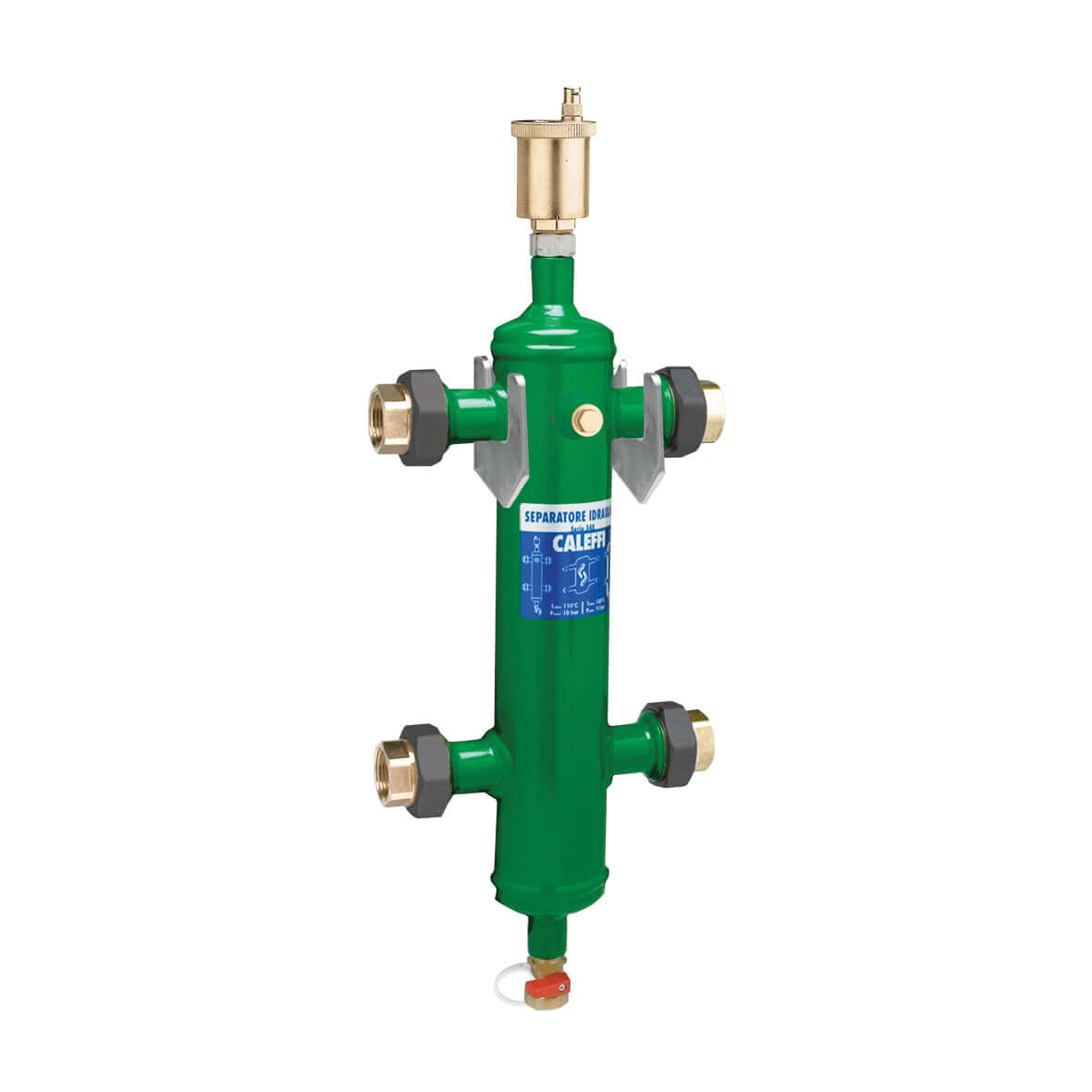

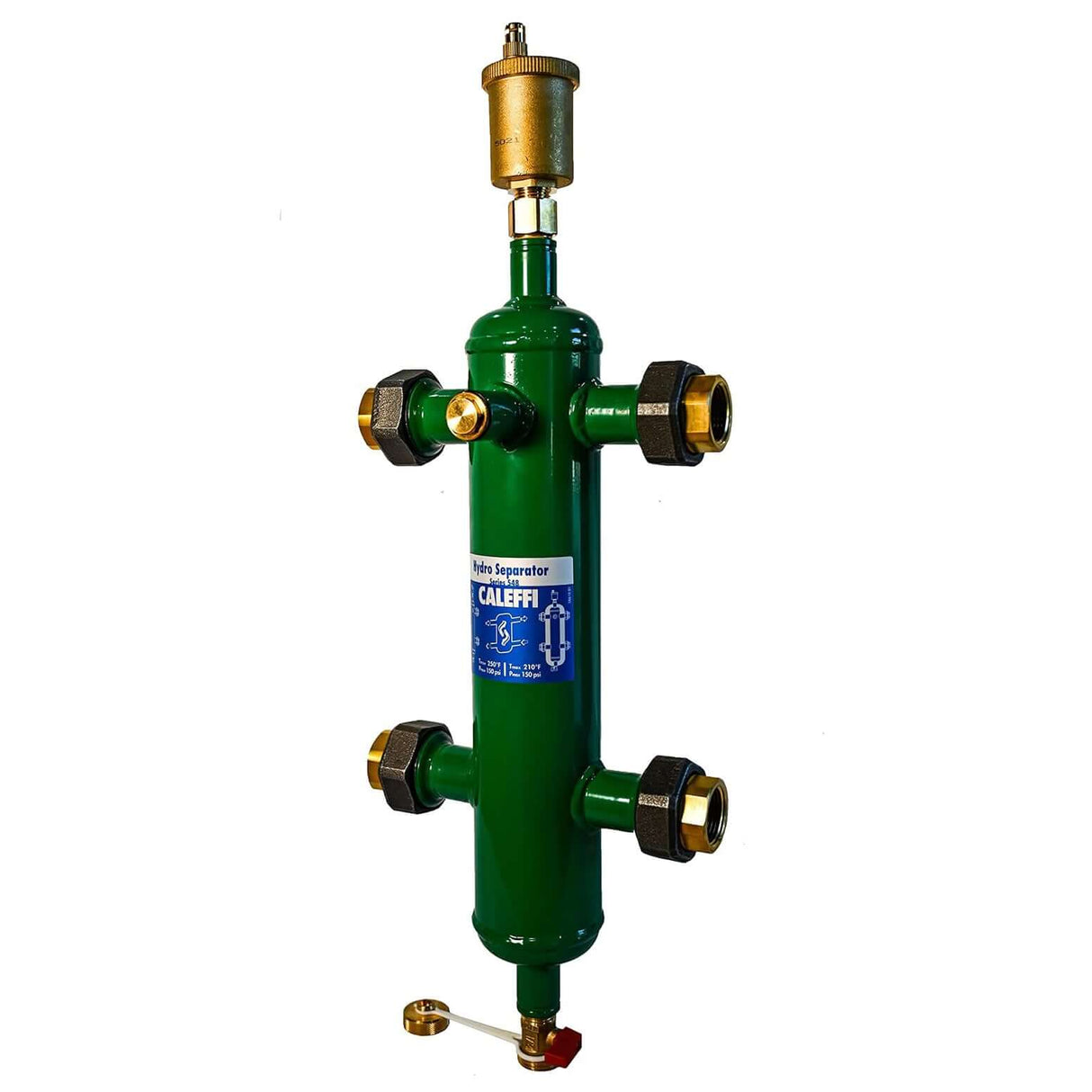

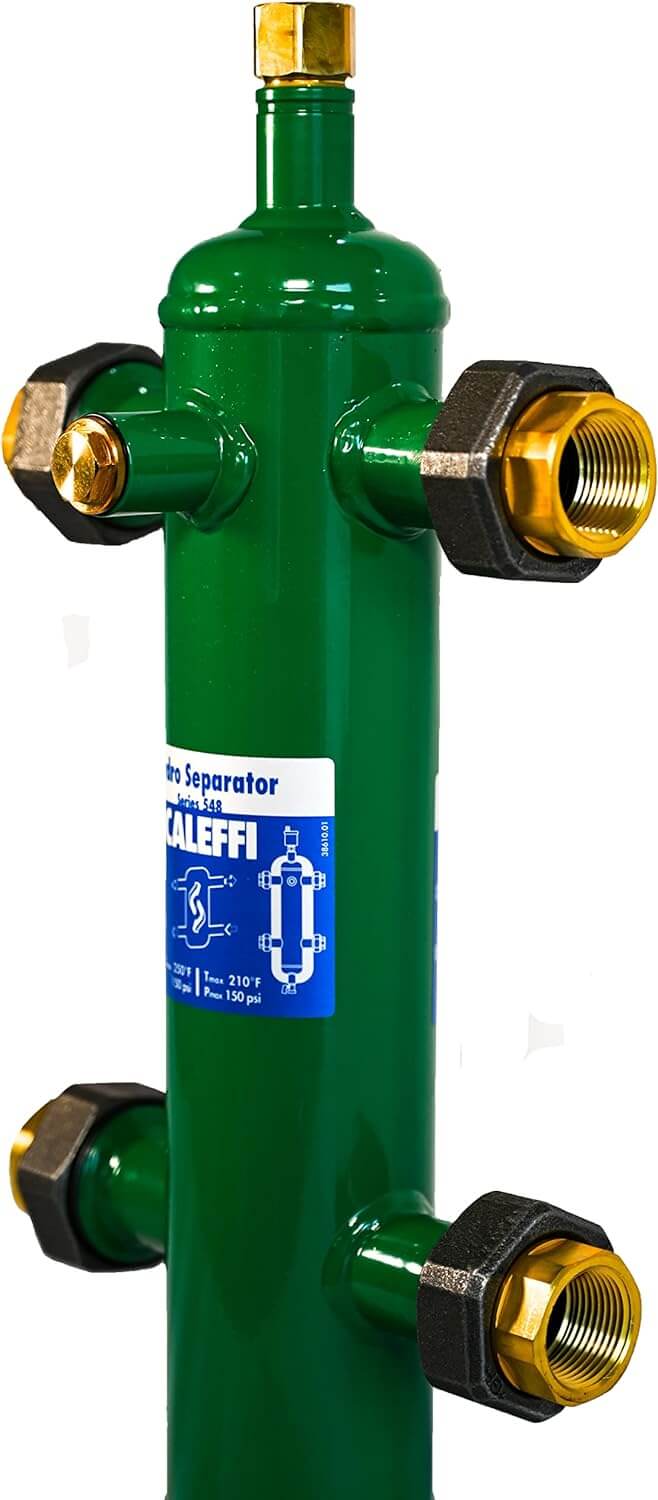

The Caleffi 548006A hydraulic separator creates a zone with a low pressure loss, which enables connected primary and secondary circuits to be hydraulically independent of each other; the flow in one circuit does not create or interupt flow in another. Hydraulically decoupling primary and seconary circuits eliminates pump conflict.
This device includes an automatic high-capacity air vent with service valve to discharge accumulated air within the circuits.
Made in Italy
Hydraulic separator. NPT female
Epoxy resin painted steel body.
Cast iron union nuts.
300 series stainless steel internal baffle.
Working temperature range of 32–210°F (0–100°C) with insulation (sold separately)
32–250°F (0–120°C) without insulation.
Glycol maximum 50%.
Max. working pressure 150 psi (10 bar).

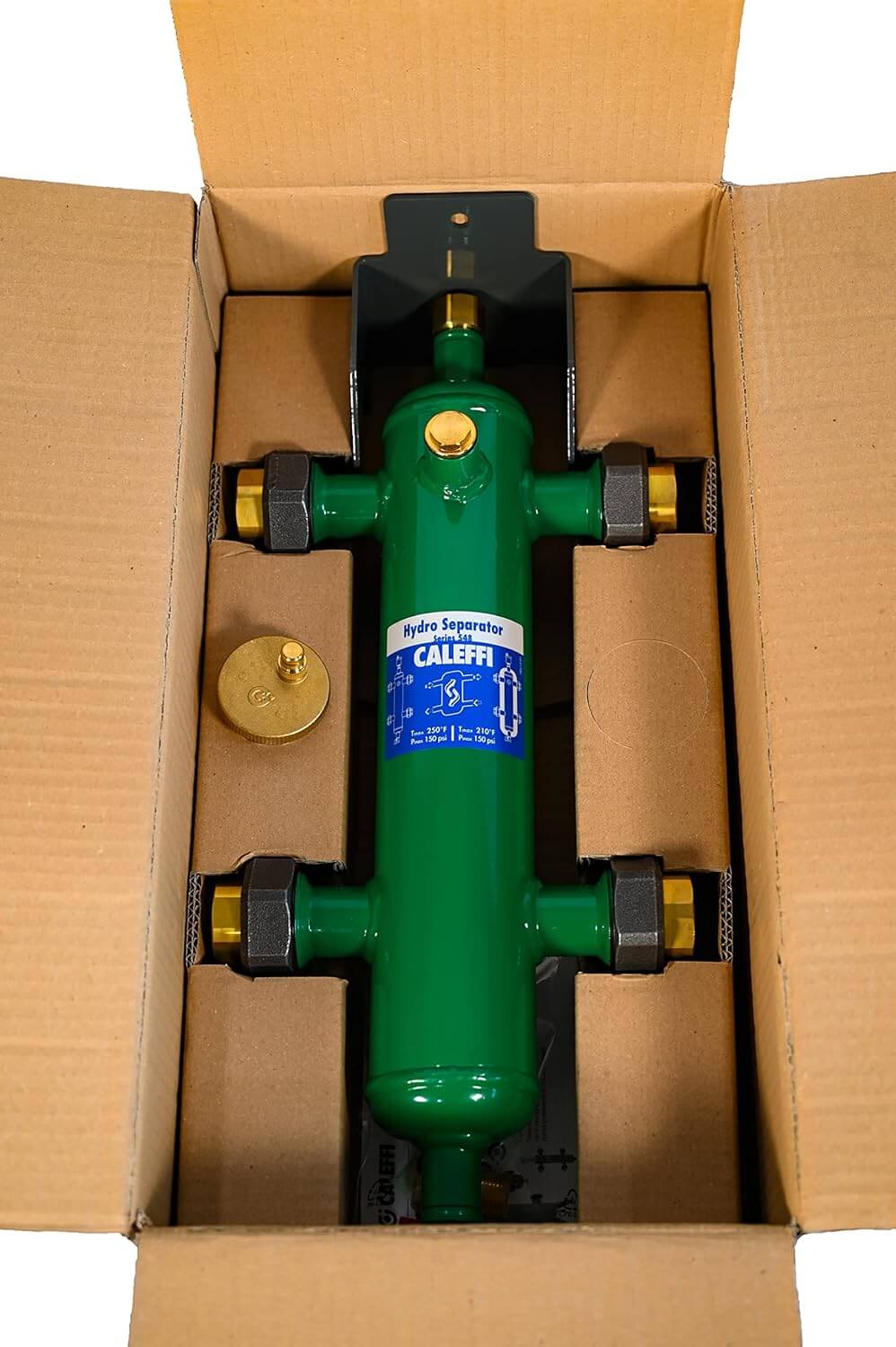

Supplied with: support bracket for wall mounting, automatic air vent with automatic service
Provide optional pre-formed double density closed cell expanded PE-X foam shell insulation with external embossed aluminium cover, purchase separately for field installation (NA10805).
Provide optional temperature pocket well kit, code NA10425
