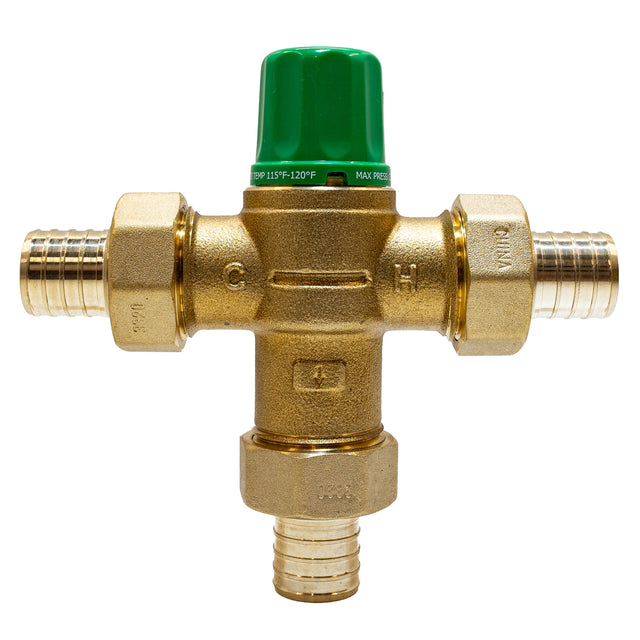

Taco Domestic Hot Water Lead-Free Mixing Valves With 1" PEX Fittings

5000 Series Lead Free ( < .25% Lead) Mixing Valve

This versatile NSF 61 ASSE 1017 mixing valve provides the ultimate performance for domestic hot water installations. The 5000 Series allows for domestic hot water storage at temperatures high enough to increase the effective storage capacity of a water heater, kill harmful bacteria and still be delivered at a safe 120˚F or less.

The valve’s unique design and advanced thermostatic element ensures a stable mixed water temperature throughout the extended 85°-176°F range.

Features

• ≤ .25% lead
• ASSE 1017 Listed
• Ideal for Domestic Water Distribution Points
• Suitable for use in Potable Water
• Delivers Stable Mixed Water Temperature
• Extended Mix Temperature Range of 85-176°F (29-80°C)
• Tamper-Resistance Cap
• Sweat, NPT, Pex, Press, CPVC Union Connections
• Check Valves Included
• Low Headloss
• Outlet Temperature Strip
• Optional Dial Gauge and Adaptor

Performance

• CV: 2.3
• Max. Flow: 20 gpm (76 L/Min)
• NOTE: Flow should never exceed standards for pipe size.
• Min. Flow: 1 gpm (3.8 L/Min)
• Hot Supply Temperature: 120-180˚F (49-82˚C)
• Cold Supply Temperature: 39-80°F (5-27°C)
• Max. Inlet Pressure: 230 psi (15.85 Bar)
• Max. Variation in Supply Pressure: 20%
• Min. Temperature Differential
• Between Hot Supply and Mixed: 10°F (5.6˚C)
• Outlet Temperature Range: 85-175 F (29-80˚C)
• Factory set to: 115-120˚F (41-45˚C)
• Accuracy of Outlet
• Temperature: ± 3˚F
