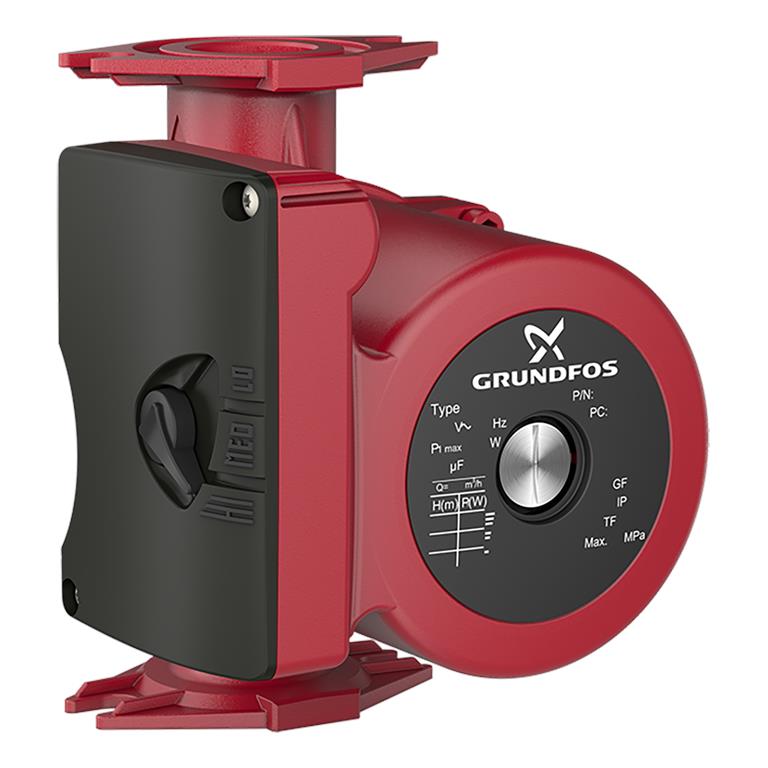

Grundfos Super Brute UPS 26-99 SFC 115V Stainless Steel circulator pump

Name: Grundfos Super Brute UPS 26-99 SFC 115V Stainless Steel circulator pump
Brand: Grundfos
SKU: GRFS-98961763
Price: 741.42 CAD
Availability: InStock

$741.42 CAD

Shipping calculated at checkout.

Grundfos UPS26-99SFC fixed flanges 3-Speed Cast Iron Super Brute Stainless Steel Circulator for hydronic radiant floor

Pickup available at Nordik Radiant

Usually ready in 2-4 days

Warranty

This product is covered by a 2 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days.

Note for US and International buyers: The customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees that may apply upon delivery.

Technical Specifications User manual

Pump Circulator Model Cross-Reference Chart Guide

Voltage

115V / 60 Hz
Watts

150W - 197W
Body

Stainless Steel
Max Head Ft.

29
Max GPM

33.0
Flanges Type

Fixed - rotated 90°

Max GPM

33.0
Flanges Type

Fixed - rotated 90°

Grundfos UPS 26-99 SFC circulator pump for radiant floor

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. Speed no: The pump has 3-step speed selector.

The pump is characterized by:

115V/60Hz
Fixed flanges
Ceramic shaft and radial bearings.
Carbon axial bearing.
Stainless steel rotor can and bearing plate.

Impeller: * Corrosion-resistant impeller, Composite, PES.
Pump housing: * Cast iron pump housing.

Phase: The motor is a 1-phase motor.
No additional motor protection is required.

Liquid:
Pumped liquid: Water
Liquid temperature range: 2 .. 110 °C
Selected liquid temperature: 60 °C
Density: 983.2 kg/m³

Technical:
Approvals on nameplate: UL, CSA

Materials:
Pump housing: Stainless Steel
EN-JL1030
ASTM 30 B
Impeller: Composite, PES

A table comparing the facets of 5 products
Facet	Grundfos Super Brute UPS 26-99 FC 115V circulator pump View details	Grundfos Super Brute UPS 15-58FC 115V, 3-Speed circulator pump View details	Grundfos ALPHA 15-58F, 115V, variable speed circulator pump View details	Wilo Star S 33 FC 115V 3-Speed Cast Iron Star Series Circulator Pump View details	Wilo Star S 33 ZF 115V 3-Speed Stainless Steel Star Series Circulator Pump View details
Price
Price	Regular price $630.03 CAD	Regular price $280.85 CAD	Sale price $327.17 CAD Regular price $363.53	Regular price $508.00 CAD	Regular price $629.33 CAD
Voltage
Voltage	115V / 60 Hz	115V / 60 Hz	115V / 60 Hz	115V / 60 Hz	115V / 60 Hz
Body Material
Body Material	Cast Iron	Cast Iron	Cast Iron	Cast Iron	Stainless Steel
Flanges
Flanges	Fixed - rotated 0°	Fixed - rotated 0°	Fixed - rotated 0°	Fixed - rotated 0°	Fixed - rotated 0°
Max Head Ft.
Max Head Ft.	29	19	20	33	33
Max GPM
Max GPM	33	17.2	14	38	33
Watts
Watts	150W - 197W	60W - 87W	2W - 38W	98W - 202W	135W - 230W
