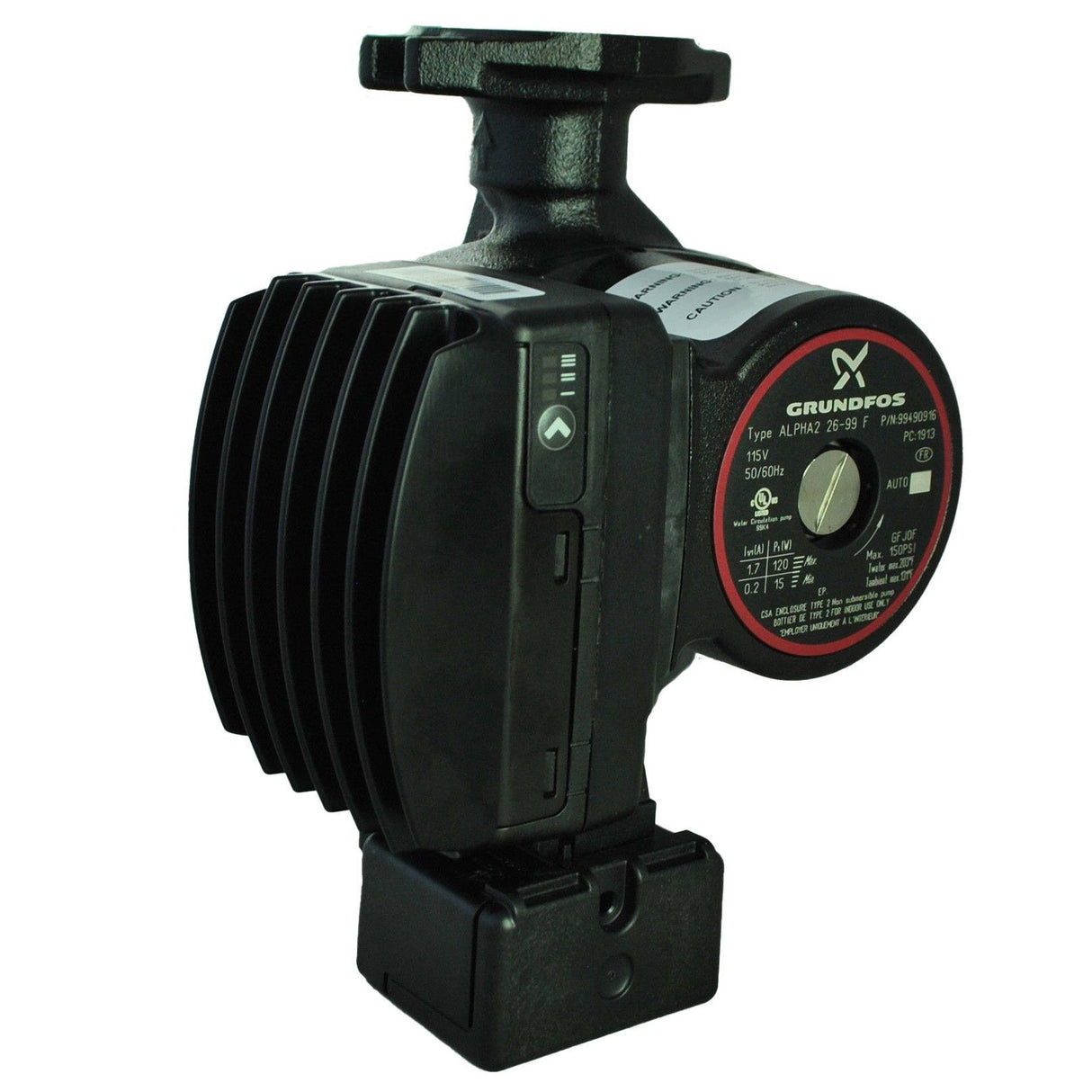

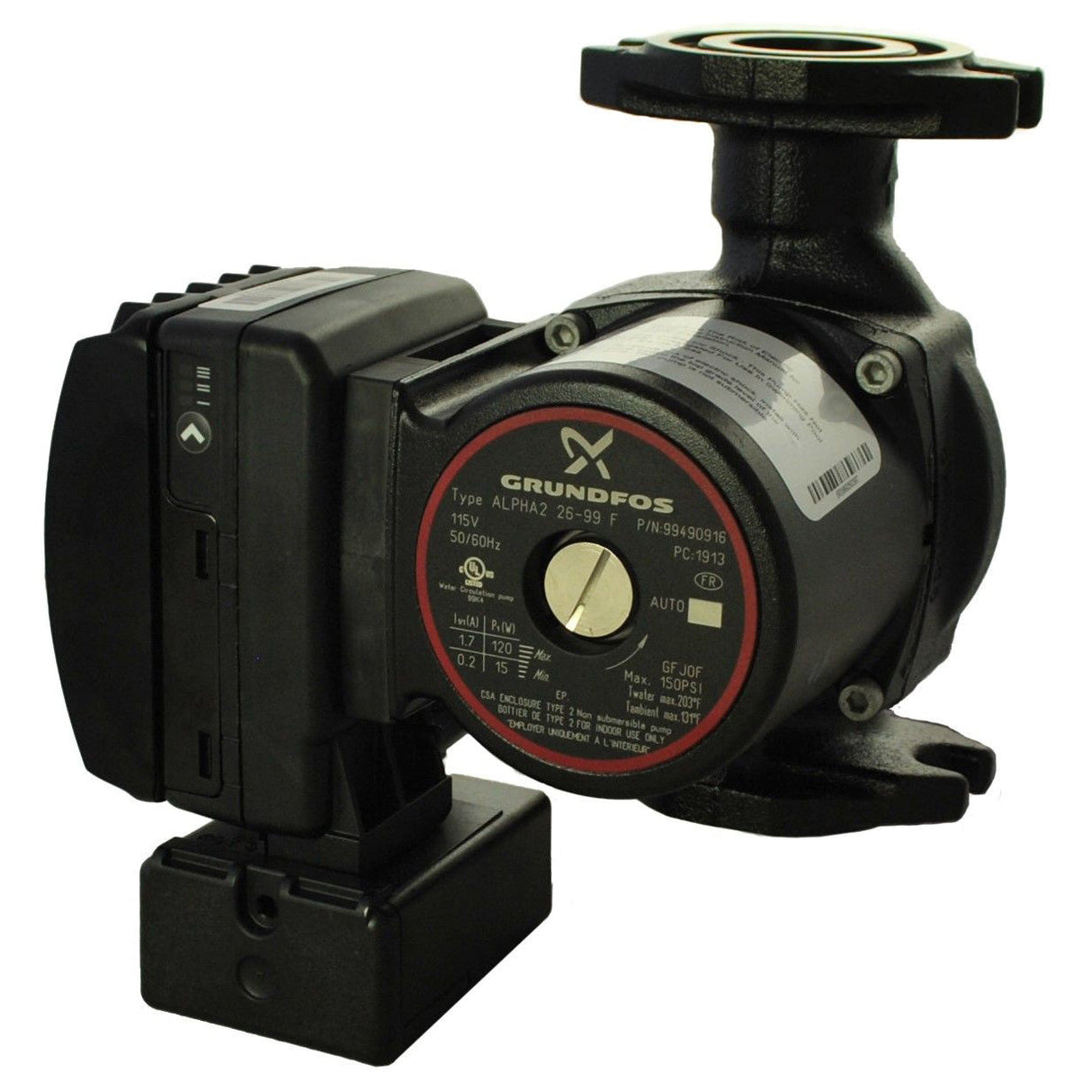

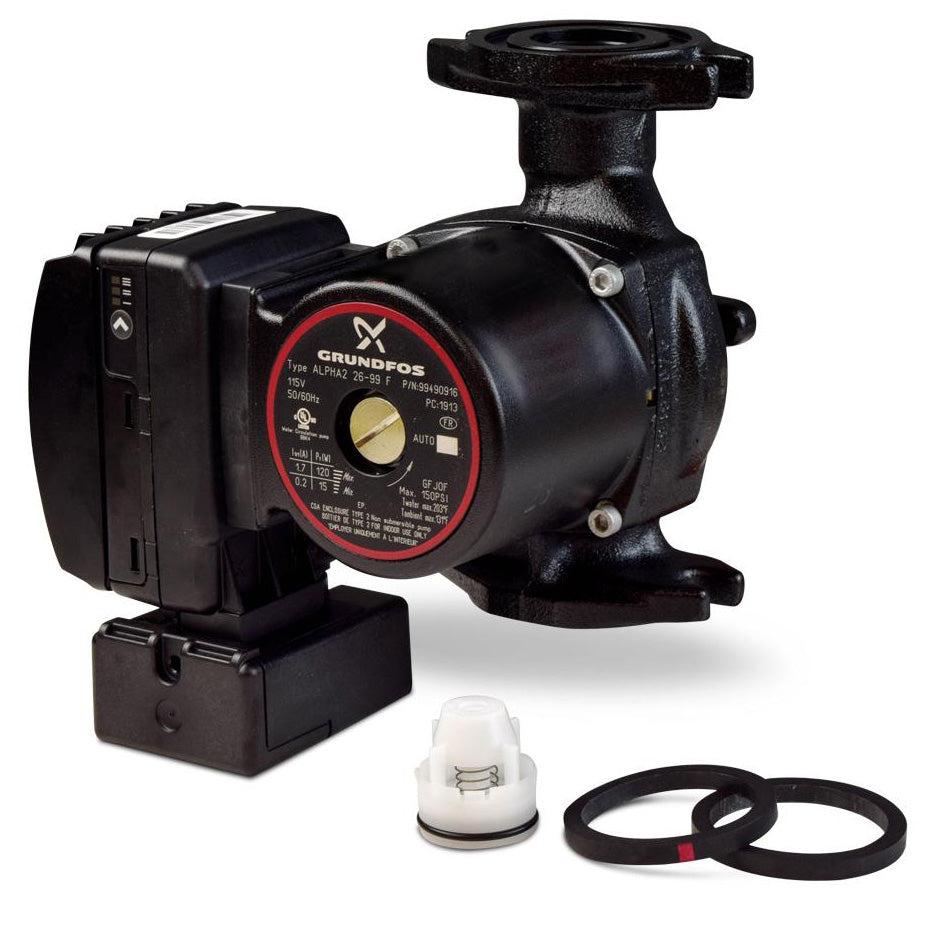

Grundfos ALPHA2 26-99FC, 115V, variable speed circulator pump

Name: Grundfos ALPHA2 26-99FC, 115V, variable speed circulator pump
Brand: Grundfos
SKU: GRFS-99490916
Price: 758.91 CAD
Availability: InStock

$758.91 CAD $843.23

Shipping calculated at checkout.

Grundfos ALPHA2 26-99FC is a high-efficiency circulator designed for heating and cooling applications. It features different operating modes, including constant pressure AUTOADAPT and proportional pressure AUTOADAPT.

Pickup available at Nordik Radiant

Usually ready in 24 hours

Warranty

This product is covered by a 2 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days.

Note for US and International buyers: The customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees that may apply upon delivery.

Technical Specifications User manual

Pump Circulator Model Cross-Reference Chart Guide

Voltage

115V / 60 Hz
Watts

10W - 125W
Body

Cast Iron
Max Head Ft.

42
Max GPM

26.0
Flanges Type

Fixed - rotated 0°

Max GPM

26.0
Flanges Type

Fixed - rotated 0°

The Grundfos ALPHA2 26-99 is a medium sized, energy efficiency circulator fitted with a permanent magnet motor (ECM) and frequency converter. Featuring eight different operating modes including constant pressure AUTOADAPT and proportional pressure AUTOADAPT, the ALPHA2 26-99 is the perfect fit for any application.

AUTOADAPT functionality enables the ALPHA2 26-99 to control operation automatically within a defined performance range. When set in proportional pressure AUTOADAPT or constant pressure AUTOADAPT, the pump will automatically analyze the system, find the optimum system curve and duty point and continue to adjust its operation to changes in demand. A magnetite resistant design, robust ceramic shaft and stainless-steel bearing plate ensure that the ALPHA2 26-99 reliably delivers the optimal system flow at the lowest possible energy consumption..

Key Features and Benefits

• 8 intelligent control modes:
• Three defined proportional pressure curve settings
• Three defined constant pressure curve settings
• Constant pressure AUTOADAPT
• Proportional pressure AUTOADAPT
• Magnetite resistant design protects the pump from harmful iron oxide found in heating systems
• High efficiency pump design and controls reduce energyconsumption by up to 85%
• 360 [mNm] starting torque clears pump of system debris and sediment
• Designed with trusted ECM technology which has been used by Grundfos for more than 16 years
• System and pump protection warning and alarm indicators
• LED light indicators for pump settings and alarms
• Easy to use push button control settings
• Designed using 65+ years of hydronic heating experience

A table comparing the facets of 5 products
Facet	Wilo Star S 21 RFC, 115V, 3-Speed Cast Iron Star Series Circulator Pump View details	Wilo Star S 21 F 115V 3-Speed Cast Iron Star Series Circulator Pump View details	Grundfos Super Brute UPS 15-58FC 115V, 3-Speed circulator pump View details	Wilo Star S 21 FX 115V 3-Speed Cast Iron Star Series Circulator Pump View details	Wilo Star S 21 ZFX 115V 3-Speed Stainless Steel Star Series Circulator Pump View details
Price
Price	Regular price $203.33 CAD	Regular price $216.00 CAD	Regular price $280.85 CAD	Regular price $216.00 CAD	Regular price $525.33 CAD
Voltage
Voltage	115V / 60 Hz	115V / 60 Hz	115V / 60 Hz	115V / 60 Hz	115V / 60 Hz
Body Material
Body Material	Cast Iron	Cast Iron	Cast Iron	Cast Iron	Stainless Steel
Flanges
Flanges	Rotating	Fixed - rotated 0°	Fixed - rotated 0°	Fixed - rotated 90°	Fixed - rotated 90°
Max Head Ft.
Max Head Ft.	21	21	19	21	21
Max GPM
Max GPM	18	18	17.2	18	18
Watts
Watts	60W - 110W	60W - 110W	60W - 87W	60W - 110W	60W - 110W
