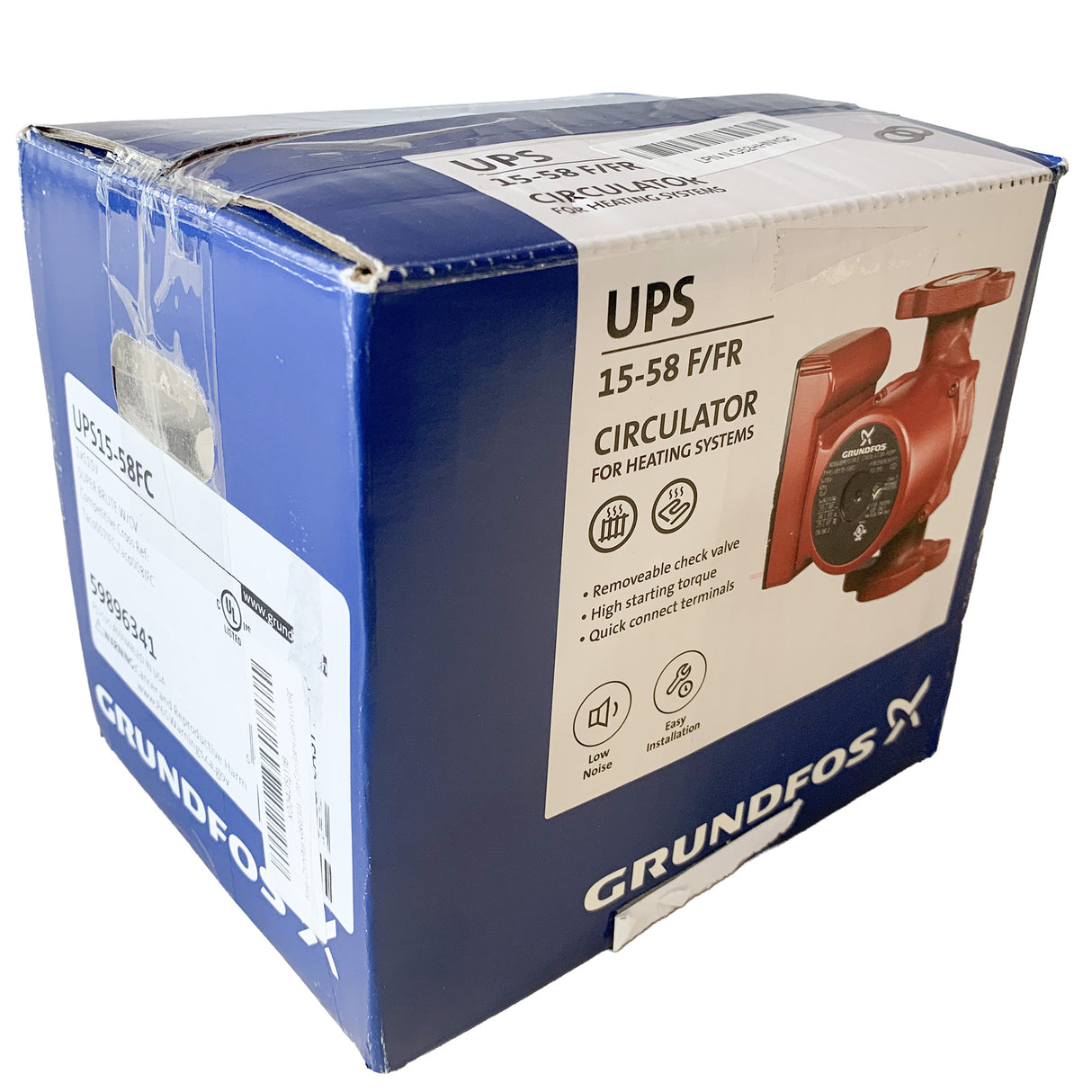

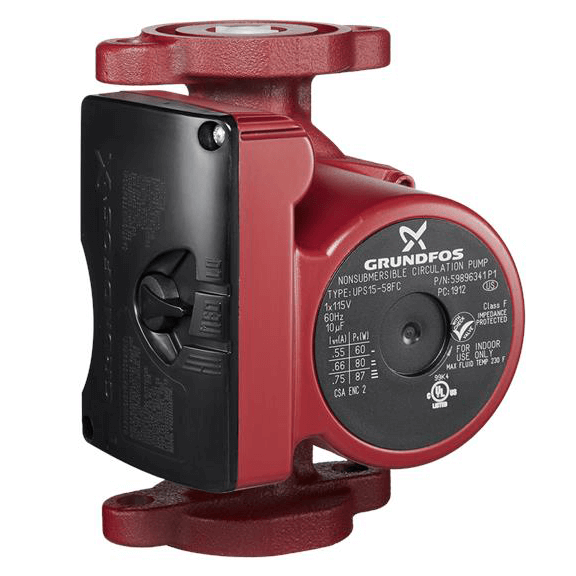

Open Box - Grundfos Super Brute UPS 15-58FC 115V, 3-Speed circulator pump

Name: Open Box - Grundfos Super Brute UPS 15-58FC 115V, 3-Speed circulator pump
Brand: Grundfos
SKU: GRFS-59896341
Price: 252.77 CAD
Availability: InStock

$252.77 CAD $280.85

Shipping calculated at checkout.

The UPS is a three speed circulator pump designed for heating and air conditioning systems. It provides reliable maintenance free operation.

The pump is a rotor type, the pump and motor form a single unit without shaft seal and with two gaskets for sealing. The bearings are lubricated by the liquid being pumped.

Pickup available at Nordik Radiant

Usually ready in 2-4 days

Warranty

This product is covered by a 2 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days.

Note for US and International buyers: The customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees that may apply upon delivery.

Technical Specifications User manual

Pump Circulator Model Cross-Reference Chart Guide

Voltage

115V / 60 Hz
Watts

60W - 87W
Body

Cast Iron
Max Head Ft.

19
Max GPM

17.2
Flanges Type

Fixed - rotated 0°

Max GPM

17.2
Flanges Type

Fixed - rotated 0°

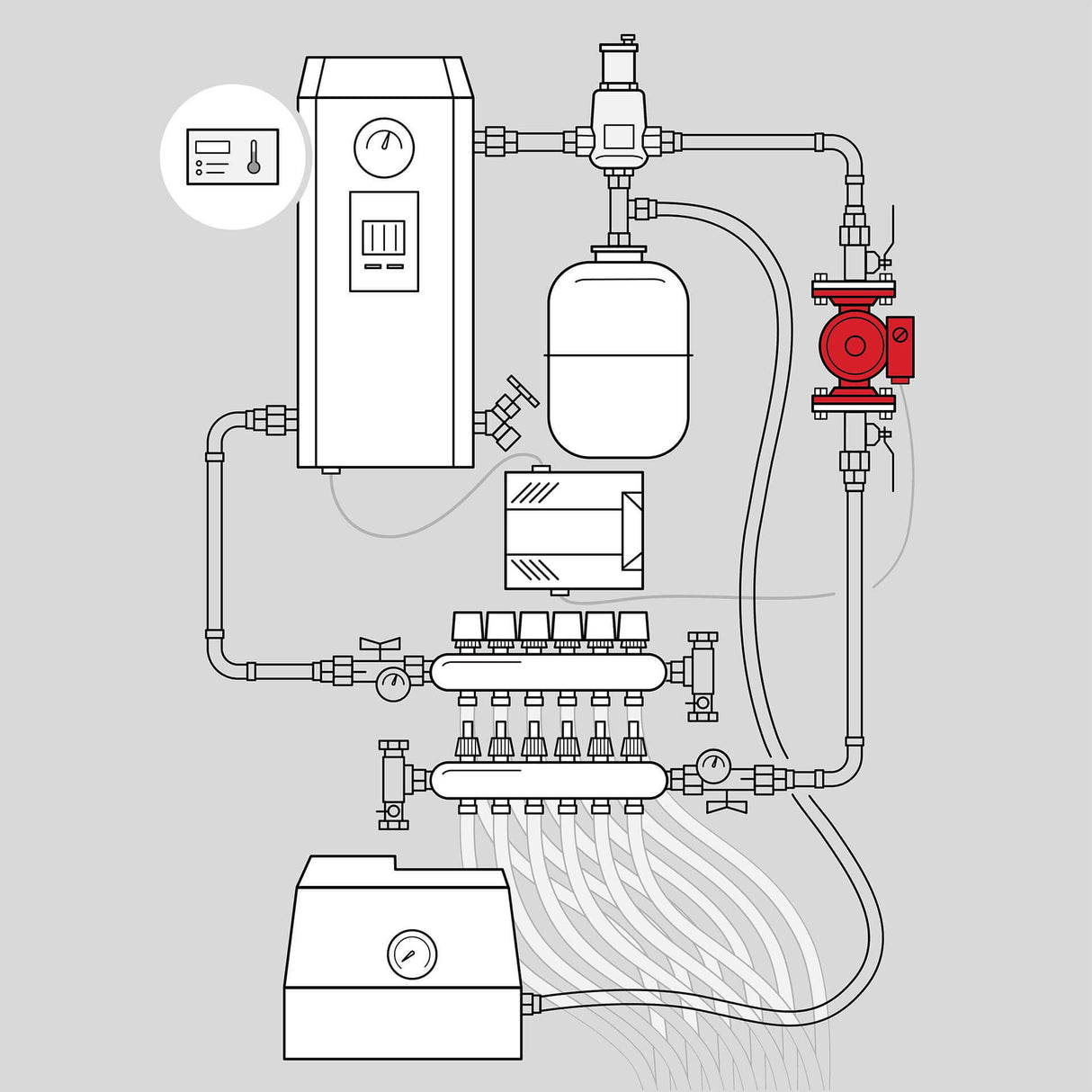

Grundfos UPS 15-58 FC circulator pump for radiant floor

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. Speed no: The pump has 3-step speed selector.

The pump is characterized by:

115V/60Hz
Fixed flanges
Ceramic shaft and radial bearings.
Carbon axial bearing.
Stainless steel rotor can and bearing plate.

Impeller: * Corrosion-resistant impeller, Composite, PES.
Pump housing: * Cast iron pump housing.

Phase: The motor is a 1-phase motor.
No additional motor protection is required.

Liquid:
Pumped liquid: Water
Liquid temperature range: 2 .. 110 °C
Selected liquid temperature: 60 °C
Density: 983.2 kg/m³

Technical:
Approvals on nameplate: UL, CSA

Materials:
Pump housing: Cast iron
EN-JL1030
ASTM 30 B
Impeller: Composite, PES

A table comparing the facets of 5 products
Facet	Grundfos ALPHA 15-58F, 115V, variable speed circulator pump View details	Wilo Star S 21 F 115V 3-Speed Cast Iron Star Series Circulator Pump View details	Wilo Star S 21 FX 115V 3-Speed Cast Iron Star Series Circulator Pump View details	Wilo Star S 21 RFC, 115V, 3-Speed Cast Iron Star Series Circulator Pump View details	Wilo Star S 21 ZFX 115V 3-Speed Stainless Steel Star Series Circulator Pump View details
Price
Price	Sale price $327.17 CAD Regular price $363.53	Regular price $216.00 CAD	Regular price $216.00 CAD	Regular price $203.33 CAD	Regular price $525.33 CAD
Voltage
Voltage	115V / 60 Hz	115V / 60 Hz	115V / 60 Hz	115V / 60 Hz	115V / 60 Hz
Body Material
Body Material	Cast Iron	Cast Iron	Cast Iron	Cast Iron	Stainless Steel
Flanges
Flanges	Fixed - rotated 0°	Fixed - rotated 0°	Fixed - rotated 90°	Rotating	Fixed - rotated 90°
Max Head Ft.
Max Head Ft.	20	21	21	21	21
Max GPM
Max GPM	14	18	18	18	18
Watts
Watts	2W - 38W	60W - 110W	60W - 110W	60W - 110W	60W - 110W
