Taco  |  SKU: TACO-0026EF2  |  Barcode: 195445293435

MPN: VM2644-HD1-RC2W00

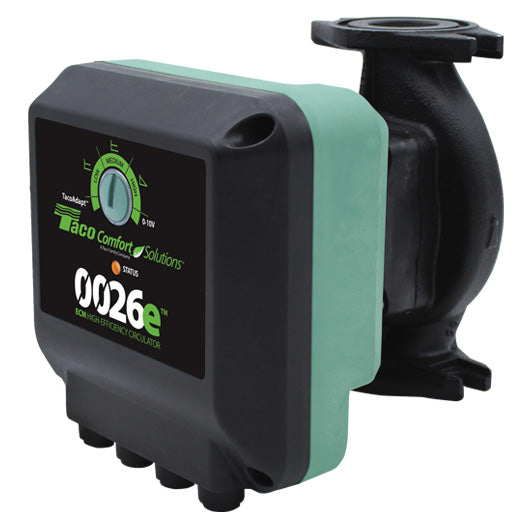

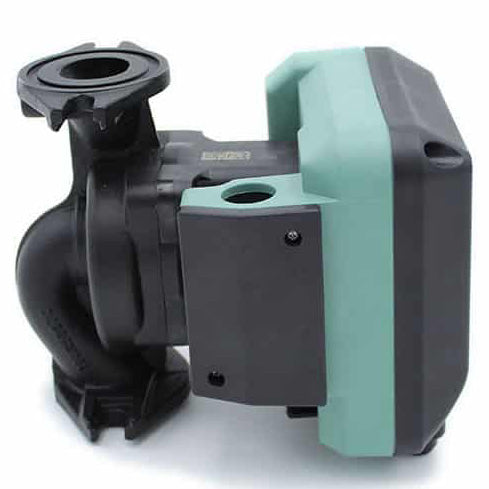

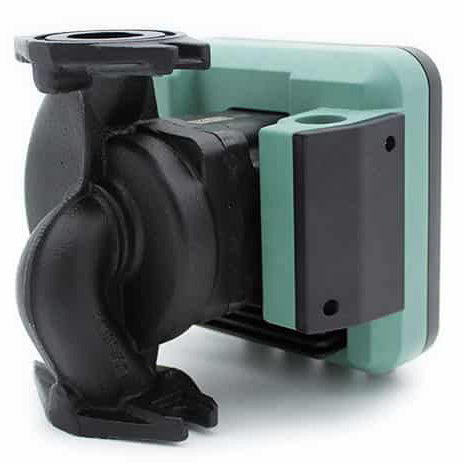

Taco 0026e F2, 115V-230V, ECM Variable speed Cast Iron Circulator Pump

Regular price $960.30 CAD
Shipping calculated at checkout.

The Taco 0026e® ECM High-Efficiency Circulator is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor.

Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators


 More payment options

Pickup available at Nordik Radiant

Usually ready in 2-4 days

Warranty

This product is covered by a 3 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days.

Note for US and International buyers: The customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees that may apply upon delivery.

Taco 0026e F2, 115V-230V, ECM Variable speed Cast Iron Circulator Pump at a glance

  • circulating pump Voltage in-floor water and glycol radiant floor heating

    Voltage

    115V-208V-230V / 50-60Hz

  • circulating pump Watt consumption in-floor water and glycol radiant floor heating

    Watts

    10-120W

  • circulating pump body in-floor water and glycol radiant floor heating

    Body

    Cast Iron

  • circulating pump head feet in-floor water and glycol radiant floor heating

    Max Head Ft.

    26

  • circulating pump GPM in-floor water and glycol radiant floor heating

    Max GPM

    44.0

  • Circulating pump flanges

    Flanges Type

    Fixed - rotated 0°

  • circulating pump GPM in-floor water and glycol radiant floor heating

    Max GPM

    44.0

  • Circulating pump flanges

    Flanges Type

    Fixed - rotated 0°

The 0026e™ is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With 5 easy settings, its variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems.

The 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. With a maximum of 26 feet of head and 44 gpm, it is available in either Cast Iron or NSF certified Stainless Steel.

APPLICATION:

• Maximum operating pressure: 150 psi (10.3 bar)
• Maximum fluid temperature: 230°F (110˚C)
• Minimum fluid temperature: 14°F (-10˚C)
• Electrical specifications:
Voltage: 115/208/230V, 50/60 Hz, single phase
Maximum operating power: 120W
Maximum amp rating: 1.0 (115V) / .50 (230V)
• Equipped with a cast iron casing
• Taco circulators are for indoor use only
• Acceptable for use with water or maximum of 50% water/glycol solution

FEATURES:

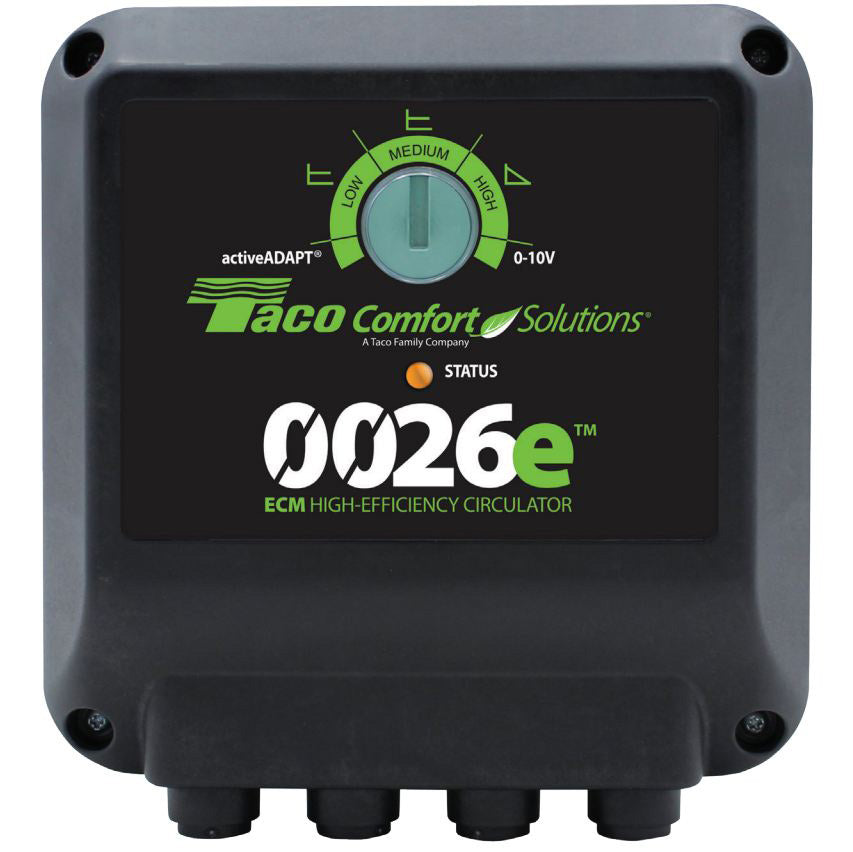

• 5 easy dial settings to match system requirements
- TacoAdapt™, LOW, MEDIUM, HIGH or 0-10V DC analog or PWM digital signal external input
• BIO Barrier® protects the pump from system contaminants
• SureStart® automatic unblocking and air purging mode
• Replaces all single speed and 3-speed circulators in its class
• Multi-color LED: power on, mode setting and error code diagnostics
• Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
• Nut-grabber feature on flanges for easier fit up
• Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
• Whisper quiet operation
• Rotatable control cover to simplify installation

Similar products

A table comparing the facets of 5 products
Facet
Taco 0026e hydronic variable 3 speed ecm high efficiency circulator pump - right side view
Taco 0026e F2, 115V-230V, ECM Variable speed Cast Iron Circulator Pump
View details
Grundfos Alpha2 26-99F radiant floor heating circulator - side view
Grundfos ALPHA2 26-99FC, 115V, variable speed circulator pump
View details
Grundfos ALPHA 15-58F 92603115, 115V, circulator pump for in-floor hydronic radiant floor heating system - side left
Grundfos ALPHA 15-58FC, 115V, variable speed circulator pump
View details
Wilo Star E 21 Wet Rotor Variable Speed Radiant Floor Circulator - front view
Wilo Star E 21 , 115V, Variable Speed Cast Iron Star Series Circulator Pump
View details
Grundfos Super Brute UPS 26-99 SFC 115V Stainless Steel circulator pump
View details
Price
Price
Regular price $960.30 CAD
Regular price $815.38 CAD
Regular price $335.00 CAD
Regular price $669.23 CAD
Regular price $707.69 CAD
Voltage
Voltage
115V-208V-230V / 50-60Hz
115V / 60 Hz
115V / 60 Hz
115V / 60 Hz
115V / 60 Hz
Body Material
Body Material
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Stainless Steel
Flanges
Flanges
Fixed - rotated 0°
Fixed - rotated 0°
Fixed - rotated 0°
Fixed - rotated 0°
Fixed - rotated 0°
Max Head Ft.
Max Head Ft.
26
42
20
20
29
Max GPM
Max GPM
44
26
14
14.5
33
Watts
Watts
10-120W
10W - 125W
2W - 38W
5W - 45W
150W - 197W
