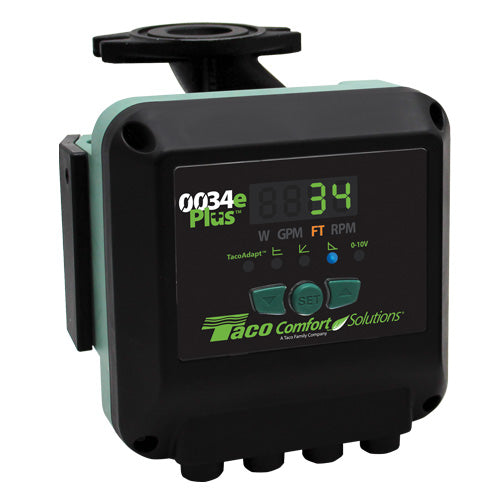

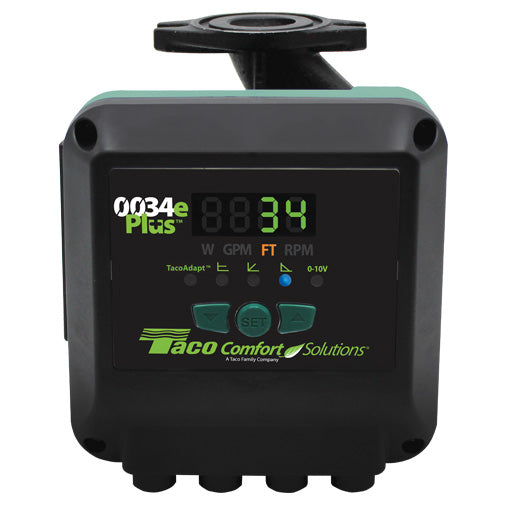

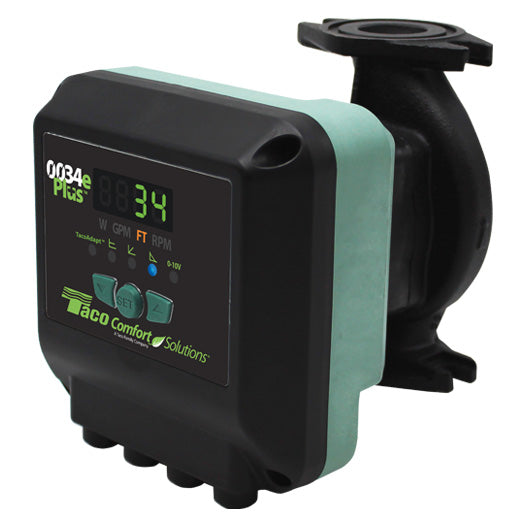

The 0034ePlus™ ECM High-Efficiency Circulators is a high-performance, variable speed, wet-rotor circulators with high-efficiency ECM permanent magnet technology.
Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The ECM technology reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. The 0034ePlus comes with an intuitive digital user interface.
Taco 0034e Plus F2, 115V-230V, ECM Variable speed Cast Iron Circulator Pump
is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Warranty
This product is covered by a 3 years limited warranty
Delivery and Shipping
Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.
Depending on your delivery location, transit time will vary from 1 day to 5 days.
Note for US and International buyers: The customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees that may apply upon delivery.
Taco 0034e Plus F2, 115V-230V, ECM Variable speed Cast Iron Circula...
Taco 0034e Plus F2, 115V-230V, ECM Variable speed Cast Iron Circulator Pump at a glance
Voltage
115V-208V-230V / 50-60Hz
Watts
10-170W
Body
Cast Iron
Max Head Ft.
34
Max GPM
50.0
Flanges Type
Fixed - rotated 0°
Max GPM
50.0
Flanges Type
Fixed - rotated 0°
The 0034e Plus™ is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology.
An intuitive digital user interface lets you choose between a variety of operating modes; TacoAdapt™, five Constant Pressure curves, five Proportional Pressure curves, Min/Max fixed speed or speed control through 0-10V DC or PWM external input.
Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0034ePlus reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators.
Features
Simple 3-button control
Digital LED screen displays; Watts, GPM, Head, RPM and diagnostic error codes
Five operating modes to match any system requirements
— TacoAdapt™, Constant Pressure, Proportional Pressure,
Min/Max Fixed Speed or speed control through 0-10V DC
or PWM external input
BIO Barrier® protects the pump from system contaminants
SureStart® automatic unblocking and air purging mode
Replaces all single speed and 3-speed circulators in its class
Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
Nut-grabber feature on flanges for easier fit-up
Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
Whisper quiet operation
Rotatable control cover to simplify installation
Applications
Maximum operating pressure: 150 psi (10.3 bar)
Minimum NPSHR: 18 psi at 203˚F (95˚C)
Maximum fluid temperature: 230°F (110˚C)
Minimum fluid temperature: 14°F (-10˚C)
Electrical specifications:
Voltage: 115/208/230V, 50/60 Hz, single phase
Maximum operating power: 170W
Maximum amp rating: 1.48 (115V) / .70 (230V)
Taco circulators are for indoor use only
Acceptable for use with water or maximum of 50% water/glycol solution
Taco 0034e Plus F2, 115V-230V, ECM Variable speed Cast Iron Circulator Pump
Regular price$1,936.80 CAD
Unit price /
Unavailable
The 0034ePlus™ ECM High-Efficiency Circulators is a high-performance, variable speed, wet-rotor circulators with high-efficiency ECM permanent magnet technology.
Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The ECM technology reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. The 0034ePlus comes with an intuitive digital user interface.
