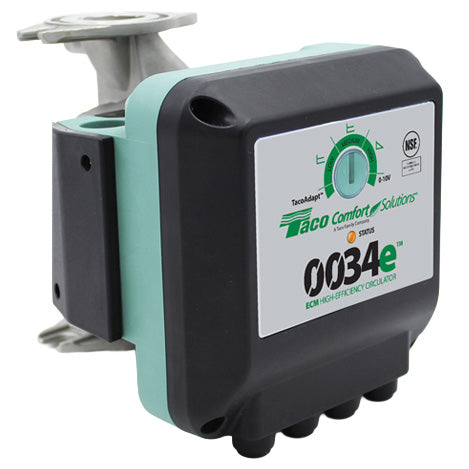

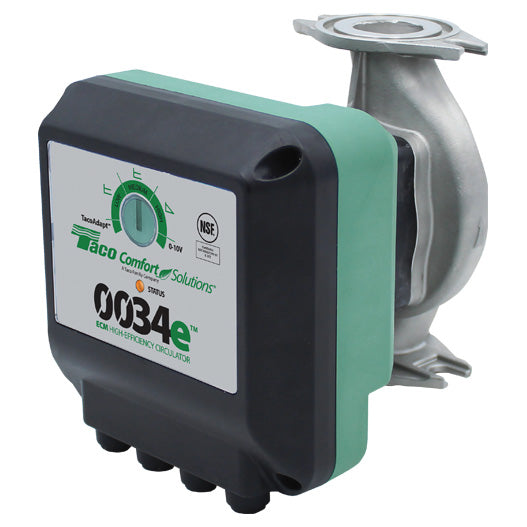

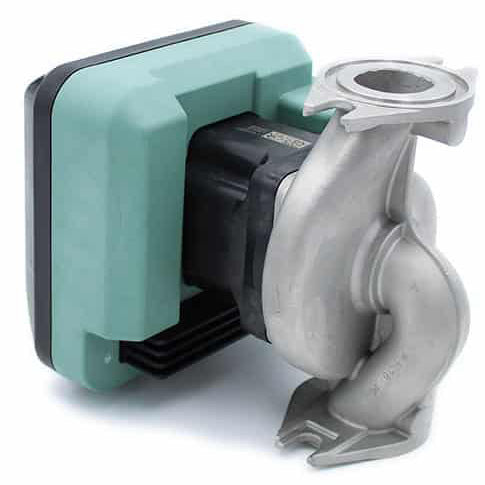

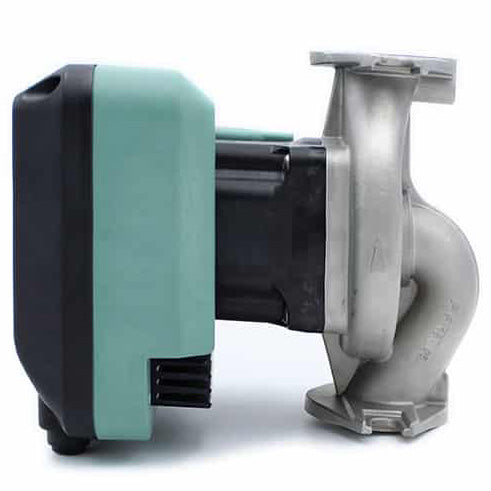

Taco 0034e SF2, 115V-230V, ECM Variable speed Stainless Steel Circulator Pump

The 0034e™ is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology.

With 5 easy settings, its variable speed performance curves are equivalent to the Taco 009, 0010, 0011, 0012, 0012 3-Speed, 0013, 0013 3-Speed & 0014.

Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0034e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators.

Features

• 5 easy dial settings to match system requirements
  - TacoAdapt™, LOW, MEDIUM, HIGH or 0-10V
  DC analog or PWM digital signal external input
• BIO Barrier® protects the pump from system contaminants
• SureStart® automatic unblocking and air purging mode
• Replaces all single speed and 3-speed circulators in its class
• Multi-color LED: power on, mode setting and error code diagnostics
• Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
• Nut-grabber feature on flanges for easier fit up
• Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
• Whisper quiet operation
• Rotatable control cover to simplify installation

Applications

• Maximum operating pressure: 150 psi (10.3 bar)
• Minimum NPSHR: 18 psi at 203˚F (95˚C)
• Maximum fluid temperature: 230°F (110˚C)
• Minimum fluid temperature: 14°F (-10˚C)
• Electrical specifications:
  Voltage: 115/208/230V, 50/60 Hz, single phase
  Maximum operating power: 170W
  Maximum amp rating: 1.48 (115V) / .70 (230V)
• Taco circulators are for indoor use only
• Acceptable for use with water or maximum of 50% water/glycol solution
