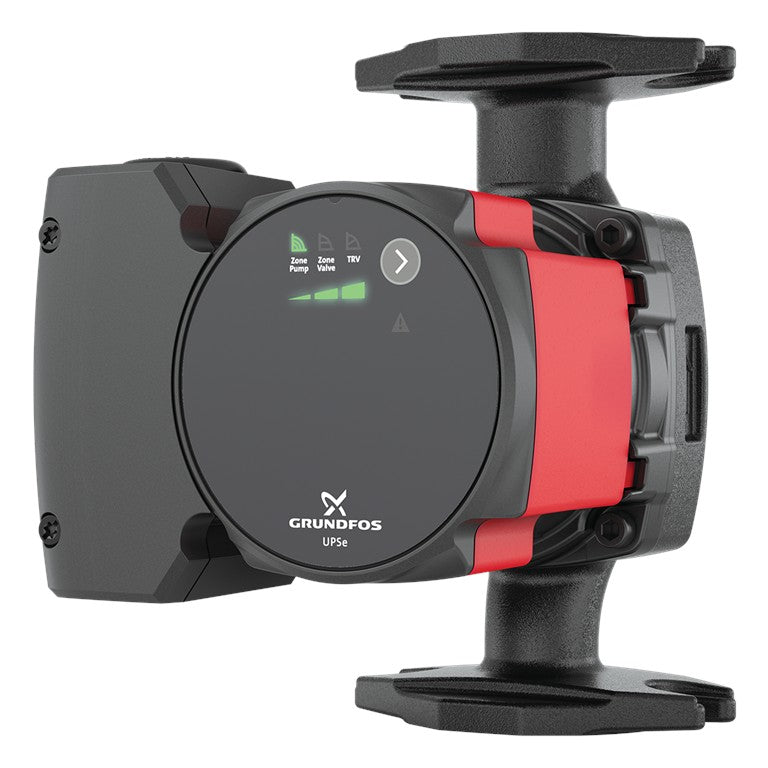

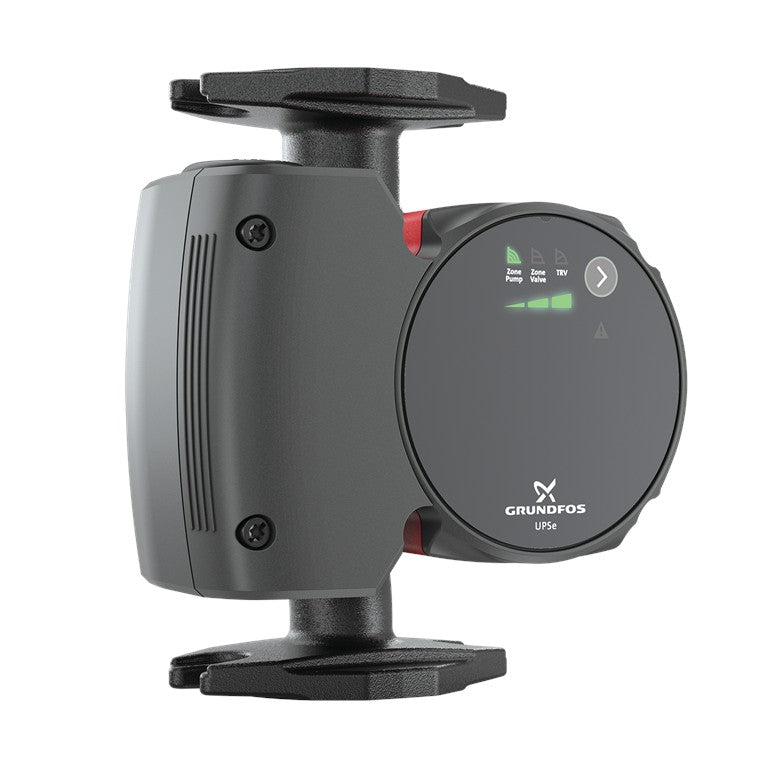

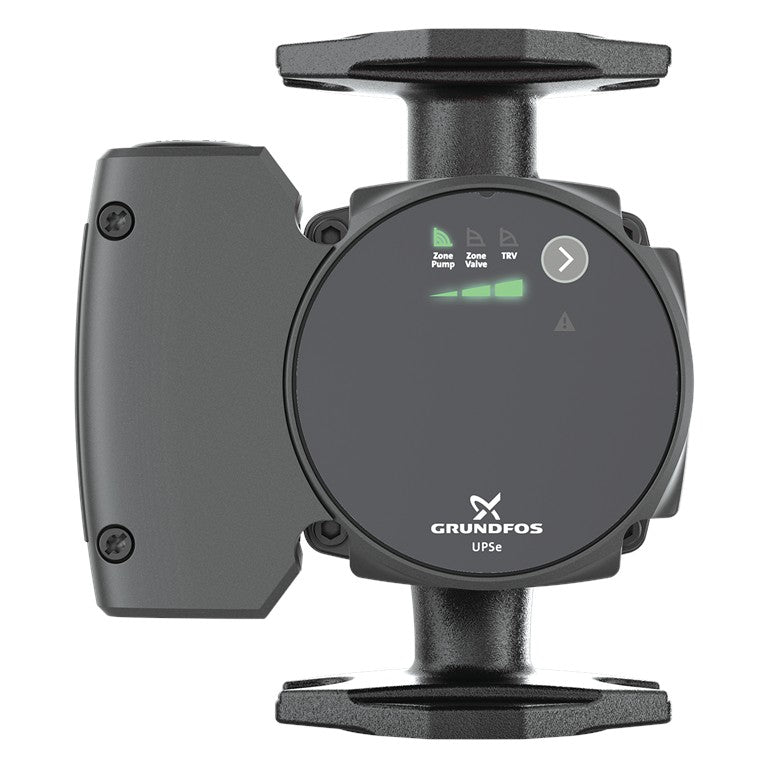

The Grundfos UPSe 15-58 is a high-efficiency circulator fitted with an electronically commutated motor (ECM). It is designed to circulate liquids in heating and cooling systems and offers one of the highest Energy Ratings in the market (193) based on the Hydraulic Institute Energy Rating.
The pump features a wide range of controls, including constant pressure, proportional pressure, and constant curve, each with three settings, making it suitable for almost any hydronic application. The UPSe meets the energy conservation standards for circulator pumps the Department of Energy established, which will take effect in May 2028.
Pickup available at Nordik Radiant
Usually ready in 2-4 days
Warranty
This product is covered by a 2 years limited warranty
Delivery and Shipping
Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.
Depending on your delivery location, transit time will vary from 1 day to 5 days.
Note for US and International buyers: The customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees that may apply upon delivery.
Grundfos UPSe 15-58FC, 115V, variable speed ECM circulator pump (replaces Grundfos UPS 15-58 FC) at a glance
Voltage
115V / 60 Hz
Watts
3W - 38W
Body
Cast Iron
Max Head Ft.
19
Max GPM
13.6
Flanges Type
Fixed - rotated 0°
Max GPM
13.6
Flanges Type
Fixed - rotated 0°
UPSe is a high-efficiency circulator fitted with an electronically commutated motor (ECM). It has been designed for circulating liquids in heating and cooling systems and offers the highest energy savings on the market.
The pump features a wide range of controls, including constant pressure, proportional pressure, and constant curve, each with three settings, making it suitable for almost any hydronic application. And, the Grundfos GO app’s replacement compatibility check makes it easier than ever to select the right replacement pump.
The new toolless, removeable power connector results in fast and easy installation. Fewer call-backs can be expected due to its robust startup, selfventing ability, and dry-run protection. Troubleshooting is also fast and easy with error codes displayed on the pump interface.
A terminal box with conduit connections is provided for power connection
Key Features And Benefits
Versatile replacement solution
Suitable replacement for most models on the market.
More flexible installations
A smaller conduit box helps with installations in small spaces and a toolless lever connector allows wiring outside of the conduit box.
Powerful unblocking feature
To reduce the risk of blockages, the pump is built with non-magnetic shafts and bearings. Should a blockage occur, the pump will try to shake the rotor loose by shifting between different torque levels.
Intelligent dry-run protection
To avoid unwanted pump breakdowns caused by dry running, the UPSe includes a built-in dry-run protection feature to stop the pump if water is not detected in the system.
Automatic self-venting
To avoid unwanted noise and reduced performance, UPSe pumps are self-venting for faster setup and less call-backs.
Intuitive troubleshooting
To help you quickly identify and overcome problems, UPSe pumps feature a warning and alarm light with specific colors and blinking patterns
The Grundfos UPSe 15-58 is a high-efficiency circulator fitted with an electronically commutated motor (ECM). It is designed to circulate liquids in heating and cooling systems and offers one of the highest Energy Ratings in the market (193) based on the Hydraulic Institute Energy Rating.
The pump features a wide range of controls, including constant pressure, proportional pressure, and constant curve, each with three settings, making it suitable for almost any hydronic application. The UPSe meets the energy conservation standards for circulator pumps the Department of Energy established, which will take effect in May 2028.
