Thermo 2000  |  SKU: T2BTH-ULTRA24

MPN: BTH ULTRA 24

BTH Ultra 24 kW / 81888 Btu - 240V electric boiler

$1,918.94 CAD
Shipping calculated at checkout.

Whether you need to heat a condominium single-family home or commercial building with a water and glycol radiant floor system Thermo 2000 bth ULTRA electric boilers are your go-to solution. With their intelligent T2 UltraSmart® controller they provide greater comfort through precise temperature management.



Warranty

This product is covered by a limited warranty of 15 years on the reservoir and 2 years on electrical and mechanical parts

* Details here

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: The customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees that may apply upon delivery.

BTH Ultra 24 kW / 81888 Btu - 240V electric boiler at a glance

  • circulating pump Voltage in-floor water and glycol radiant floor heating

    Voltage

    240V / 60 Hz

  • circulating pump Watt consumption in-floor water and glycol radiant floor heating

    Power

    24 kW / 81,888

  • In-floor hydronic water and glycol radiant floor heating system boiler electrical elements

    Elements Configuration

    4 X 6 kW

  • In-floor hydronic water and glycol radiant floor heating system breaker size required for boiler

    Suggested Circuit Breaker *

    125A

  • In-floor hydronic water and glycol radiant floor heating system wire gage required for boiler

    Suggested Wire Gauge *

    #2 (Copper) / #0 (Aluminum)

  • Inlet and Outlet Diameter for in-floor hydronic radiant floor heating system boiler

    Connections

    1"

* The wire gauges and breaker capacity must be in conformity with the standards of the National Electrical Code (NEC), Canadian Electrical Code (CEC) and local codes (if applicable)

Reliability and performance in compact sizes.

bth ULTRA electric boilers are available in a wide variety of performance levels, from 7 kW to 36 kW, and with multiple voltage options. They can meet any-and all-of your hydronic heating needs.

Whether you need to heat a condominium, single-family home or commercial building, bth ULTRA is an ultra-silent solution for new installations or replacement of an existing system. Its compact size is ideal for small spaces. In addition, the piping can be connected in multiple ways, making the on-wall boiler installation very easy.

The bth ULTRA can be combined with an auxiliary heater for a dual-energy system. Thanks to its UltraSmart TM controller, the boiler provides optimal comfort with accurate temperature management.

Producing no combustion or GHG emissions, the bth ULTRA is a highly energy-efficient and green alternative. Maintenance is simple and kept to a minimum.

Features

  • Accurate and easily configurable UltraSmart TM controller with backlight display
  • Preset configurations based on heating distribution system
  • Outdoor sensor that modulates boiler water temperature
  • The UltraSmart TM controller enables users to view the boiler’s operation status at a glance
  • Heating stops when outside temperature gets warmer
  • “Boost” mode that automatically increases the temperature when needed
  • Works only when triggered by the thermostat
  • Ability to purge the pump when system is not running
  • Adjustable between 50 °F and 190 °F
  • Safety control to limit excessively high temperatures
  • Electrical supply and heat pump contact (contact only with commercial boilers)
  • Breakers with 33 & 36 kW residential models
  • 24 V electrical supply for thermostat and other accessories
  • 30 PSI safety relief valve
  • Drain/purge valve

Thermo 2000 bth ULTRA

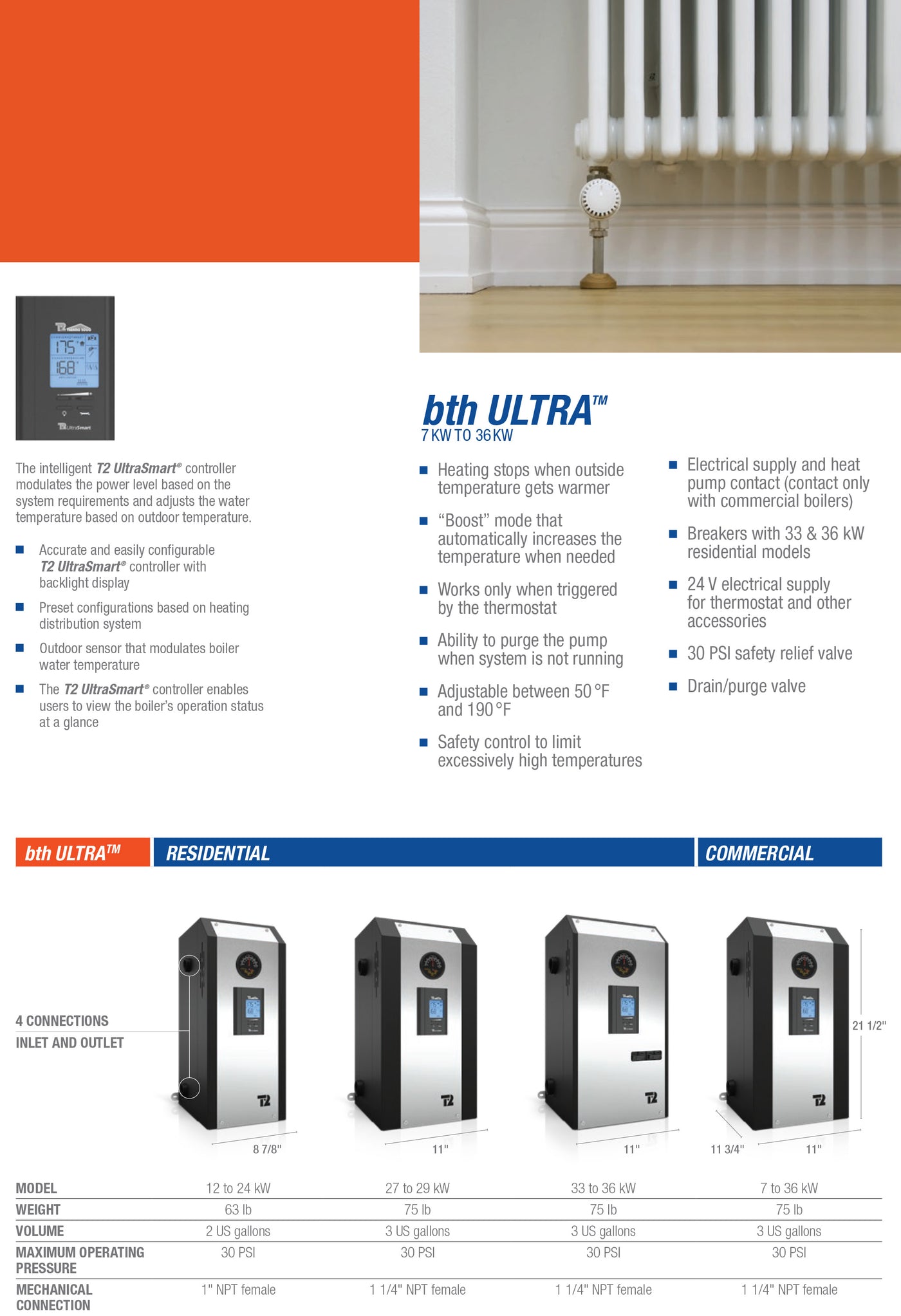

Thermo 2000 BTH Ultra Radiant Floor Electric Boiler at a glance

UltraSmart Controller User's Guide

ZEL100-ULTRA UltraSmart digital controller for Thermo2000 Ultra electric boiler

What else do you need?

Thermo 2000 BTH Ultra 240V 24kW electric boiler for hydronic radiant floor
Thermo 2000

BTH Ultra 24 kW / 81888 Btu - 240V electric boiler

$1,918.94 CAD

Whether you need to heat a condominium single-family home or commercial building with a water and glycol radiant floor system Thermo 2000 bth ULTRA electric boilers are your go-to solution. With their intelligent T2 UltraSmart® controller they provide greater comfort through precise temperature management.

Voltage

240V / 60 Hz

Elements Configuration

4 X 6 kW

Circuit Breaker Required

125A

Wire Gauge Required (copper)

#2

Wire Gauge Required (aluminum)

#0

Connection Diameter

1"

Watts

24 000

Body

N/A

MaxHead Ft.

N/A

Max GPM

N/A

Flanges Type

N/A

Warranty

15 years on the reservoir and 2 years on electrical and mechanical parts
